Air Conditioner Copper Pipe Joint Types Made Simple

Copper pipe joint types are crucial for your air conditioner to operate efficiently. Understanding how they function and ensuring they are installed correctly prevents leaks. This also contributes to the longevity of your system. Familiarizing yourself with air conditioner copper pipe joint types helps keep your AC running smoothly and avoids costly repairs.

Key Takeaways

• Knowing copper pipe joint types is important for air conditioners. It stops leaks and makes the system last longer.

• Installing joints like flared, brazed, and compression types correctly is key. This makes strong connections that don’t leak. Always check for leaks after installing.

• Taking care of your system, like checking for leaks and cleaning pipes, helps it work well and avoids expensive repairs.

Overview of Air Conditioner Copper Pipe Joint Types

Knowing the types of copper pipe joints is important. It helps your air conditioner work well and last longer. Each type has its own features and uses. Below is a simple guide to common joint types in air conditioners.

Flared Joints

Flared joints are popular because they are simple and strong. To make one, the pipe's end is flared into a cone shape. A nut is then tightened to secure it.

Advantages of Flared Joints:

• They create a strong seal that doesn’t leak.

• They can be reused, which is helpful for repairs.

Uses:
Flared joints are used in systems where easy maintenance is needed.

Brazed Joints

Brazed joints are very strong and long-lasting. This method heats the pipes and uses filler metal to bond them. It works well for high-pressure systems.

Brazing makes a tough, leak-proof joint. It handles vibrations and lasts a long time in HVAC systems.

Compression Joints

Compression joints are easy to use. They don’t need heat or soldering. A nut and ring are used to seal the connection.

Advantages:

• Quick to install without special tools.

• Good for joining different materials.

• Easy to take apart and put back together.

Limitations:

Push-Fit Joints

Push-fit joints are a newer way to connect pipes. You just push the pipe into the fitting. No tools or heat are needed.

Benefits of Push-Fit Joints:

• They are quick to install.

• They are beginner-friendly.

Push-fit joints are best for low-pressure or temporary setups. They are not as strong as brazed or soldered joints for high-pressure systems.

Soldered Joints

Soldered joints are a classic way to join pipes. The pipe is heated, and solder is added to seal it.

Features of Soldered Joints:

• They make a reliable, leak-proof seal.

• They are affordable for home air conditioners.

Soldered joints work well for low to medium-pressure systems. Proper technique is key to avoid leaks or weak spots.

Tools and Materials for Copper Pipe Installation

Essential Tools for Installation

Using proper tools makes installation easier and more effective. Tools made for copper pipes help create strong, leak-free joints. Here are some must-have tools:

• Pipe Cutter: Cuts pipes neatly without damaging the edges.

• Flaring Tool: Makes flared ends for flared joints.

• Brazing Torch: Heats pipes to join them with brazing.

• Compression Wrench: Tightens nuts in compression joints securely.

• Deburring Tool: Smooths sharp edges after cutting pipes.

These tools work well for high-pressure systems. For example:

Recommended Materials for Leak-Free Joints

Picking the right materials is as important as using good tools. Copper is the most popular choice for air conditioner pipes because it is strong and reliable. Other materials like PVC and PEX are also used. Here's a comparison:

Copper is the best option for air conditioners because it handles high pressure well.

Safety Equipment for Installation

Safety is very important when working with copper pipes. Use the right gear to stay safe during installation. Essential safety items include:

• Heat-Resistant Gloves: Protect hands from heat when using a torch.

• Safety Goggles: Keep sparks and debris out of your eyes.

• Respirator Mask: Stops harmful fumes from being inhaled during soldering or brazing.

Wearing safety gear lowers the chance of injuries and keeps the workspace safe.

Installation Steps for Copper Pipe Joints

Installing copper pipe joints correctly helps prevent leaks and ensures your air conditioner works well. Follow these simple steps for a strong and reliable connection.

Getting Copper Pipes Ready

Good preparation is key to success. First, clean the pipe ends to remove dirt or rust. Use a pipe cutter for smooth cuts, and deburr sharp edges. Secure the pipes with brackets or hangers to keep them steady. After installation, test the system for leaks by applying pressure.

How to Install Flared Joints

Flared joints are easy and strong. Slide a flare nut onto the pipe. Use a flaring tool to make a cone-shaped end. Match the flare to the fitting size. Hand-tighten the nut, then secure it with two wrenches. Don’t overtighten. Test the joint for leaks by adding pressure.

1. Put the flare nut on the pipe.

2. Use a flaring tool to shape the pipe end.

3. Match the flare to the fitting and tighten the nut.

4. Use two wrenches to secure the connection.

5. Check for leaks by applying pressure.

How to Install Brazed Joints

Brazed joints are strong and long-lasting. Clean the pipe ends to remove grease or dirt. Leave a small gap between pipes for the filler metal to flow. Apply flux to stop oxidation. Heat the joint evenly with a torch, letting the filler metal seal the connection. Let it cool naturally and clean off any leftover flux.

How to Install Compression Joints

Compression joints are quick and simple. Cut the pipe straight and deburr the edges. Insert the pipe into the fitting and align it properly. Tighten the nut with a wrench, but don’t overtighten. Test the joint for leaks by applying pressure. These joints are great for systems that need frequent adjustments.

How to Install Push-Fit Joints

Push-fit joints are easy for beginners. Cut the pipe to the right length and deburr the edges. Mark how deep the pipe should go into the fitting. Push the pipe into the fitting until it reaches the mark. Check the alignment and test for leaks by adding pressure. These joints work best for low-pressure or temporary setups.

1. Cut the pipe to the needed length.

2. Deburr the edges to remove sharp parts.

3. Mark the depth on the pipe.

4. Push the pipe into the fitting until it reaches the mark.

5. Check the alignment and depth.

6. Test for leaks by applying pressure.

How to Install Soldered Joints

Soldered joints are a classic and trusted method. Clean the pipe ends and apply flux to stop oxidation. Heat the joint with a torch until the flux bubbles. Touch solder to the joint, letting it melt and seal the connection. Let it cool naturally, then inspect the joint for smooth solder flow. Test for leaks by applying pressure.

Tip: Use a heatproof cloth to protect nearby surfaces while soldering.

Common Mistakes to Avoid During Installation

Wrong Pipe Measurements

Measuring pipes correctly is very important. Wrong measurements can cause bad connections, leading to leaks or system failure. For example, the Big Dig in Boston showed how bad measurements can cause disasters. Leaks in the system caused a tunnel to collapse, leading to big safety and money problems.

Corrosion can also happen due to bad measurements. From 1998 to 2017, 18% of pipeline problems were caused by corrosion. This often happens when pipes are too short or not lined up right. Gaps form, letting water or refrigerant escape.

To stop these issues, always check your measurements twice. Make sure pipes fit tightly without gaps.

Heating Problems During Brazing

Brazing needs the right temperature. Too much heat can burn the flux and ruin the metal. Too little heat stops the alloy from sealing the joint. Both mistakes can cause weak joints and leaks.

Watch closely while brazing. The flux should bubble, and the alloy should flow smoothly. Don’t heat the joint for too long, as it can weaken it. Even heating and good timing make strong, leak-free joints.

Using the Wrong Tools or Materials

Using tools or materials that don’t match can cause problems. For example, a pipe cutter not made for copper can leave rough edges. This makes it hard to seal the pipe well. Also, mixing copper with PVC without the right adapters can cause leaks.

Always pick tools and materials made for copper pipes. This helps create tight seals and avoids leaks.

Skipping Leak Tests After Installation

Leak testing is very important and should never be skipped. If a joint leaks, it will usually happen right away under pressure. Testing makes sure the system is clean, dry, and sealed before adding refrigerant.

To test, add pressure to the system and check all joints. Look for escaping air or refrigerant. This simple step can prevent expensive repairs and keep your air conditioner working well.

Maintenance Tips for Copper Pipes and Joints

Check for Leaks and Corrosion Often

Look at your copper pipes regularly to find problems early. Check for leaks, damage, or corrosion. Corrosion looks like green or white spots on pipes. Leaks may cause water stains or dripping. Use a flashlight to see hidden areas. Write down any issues you find. Note the location, problem, and what needs to be done. For example:

Regular checks keep your air conditioner working well.

Clean and Replace Old Parts

Clean copper pipes to stop clogs and pressure problems. Mix vinegar and salt to make a cleaning paste. Rub it on corroded spots, scrub gently, and rinse with warm water. Replace old parts like valves or fittings quickly. This keeps your system running better and saves energy.

Keep Refrigerant Pressure Right

Check refrigerant pressure to protect your air conditioner. Use a gauge to make sure it’s in the safe range. High pressure can damage pipes, and low pressure makes cooling worse. Keeping the pressure correct helps pipes last longer and saves energy.

Get Professional Help Regularly

Have a professional check your system once a year. They can inspect, clean, and fix hidden problems. Expert care keeps your copper pipes in great shape and your air conditioner working efficiently.

Installing copper pipe joints the right way helps your AC work well and last longer. Follow the steps to make sure there are no leaks. Don’t skip important steps like testing for leaks or using the wrong tools.

Check for leaks often and clean pipes to keep them in good shape. These tips will help you get great results!

FAQ

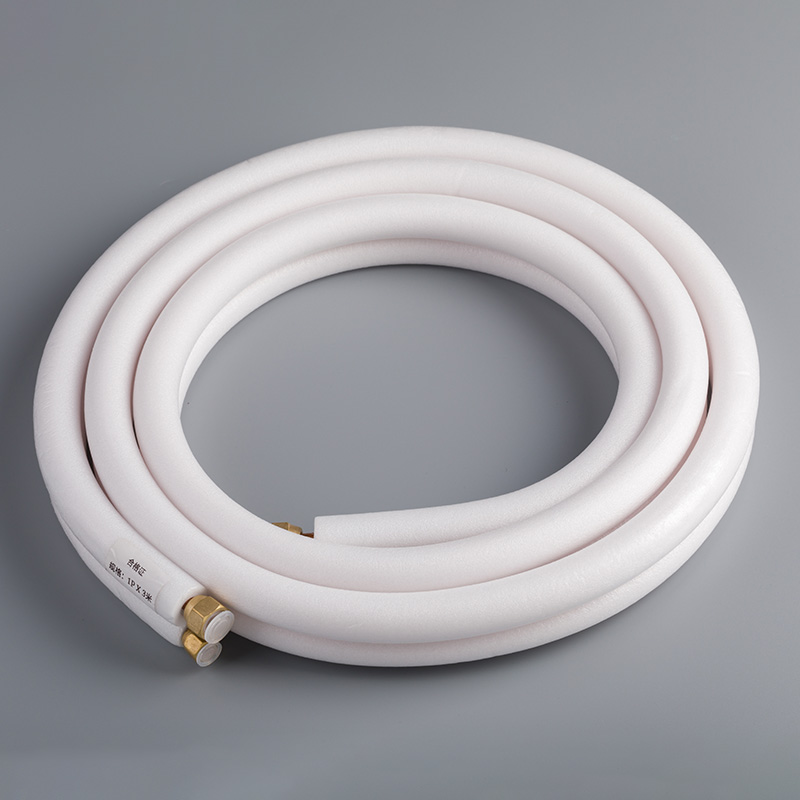

What’s the best way to insulate copper pipes?

Use foam or rubber pipe insulation. It stops heat loss and freezing. This keeps refrigerant lines working well and protects your system.

How do you find and fix leaks in copper pipes?

Test for leaks by adding pressure to the system. Check for escaping air or refrigerant. Clean the joints before fixing them for a tight seal.

Why is insulation needed for copper pipes?

Insulation saves energy and stops pipes from freezing. It also keeps HVAC systems efficient by keeping refrigerant lines at the right temperature.
