Understanding Copper Line Sets and Their Role in Cooling

Baoyuan

·April 25, 2025

·11 min read

Understanding Copper Line Sets and Their Role in Cooling — Image Source: pexels

A copper line set for air conditioner systems is essential. It consists of two copper tubes that connect the indoor and outdoor units. These tubes allow refrigerant to flow through the system, effectively cooling the air.

The purpose of the line set is to facilitate the smooth movement of refrigerant. This efficiency helps maintain low energy consumption and safeguards the equipment. Copper is durable and performs well with high-pressure refrigerants such as R-410A, making it an excellent choice for modern air conditioners.

Key Takeaways

Copper pipes link indoor and outdoor AC units. They move refrigerant to cool your home.
Good insulation on these pipes stops heat loss and saves energy. It also keeps moisture from causing damage.
Checking copper pipes often for leaks or breaks helps them work well and last longer.
Using copper pipes is smart because they are strong and work great in air conditioners.
Switching out old or broken pipes is important. It keeps cooling systems working well with new refrigerants.

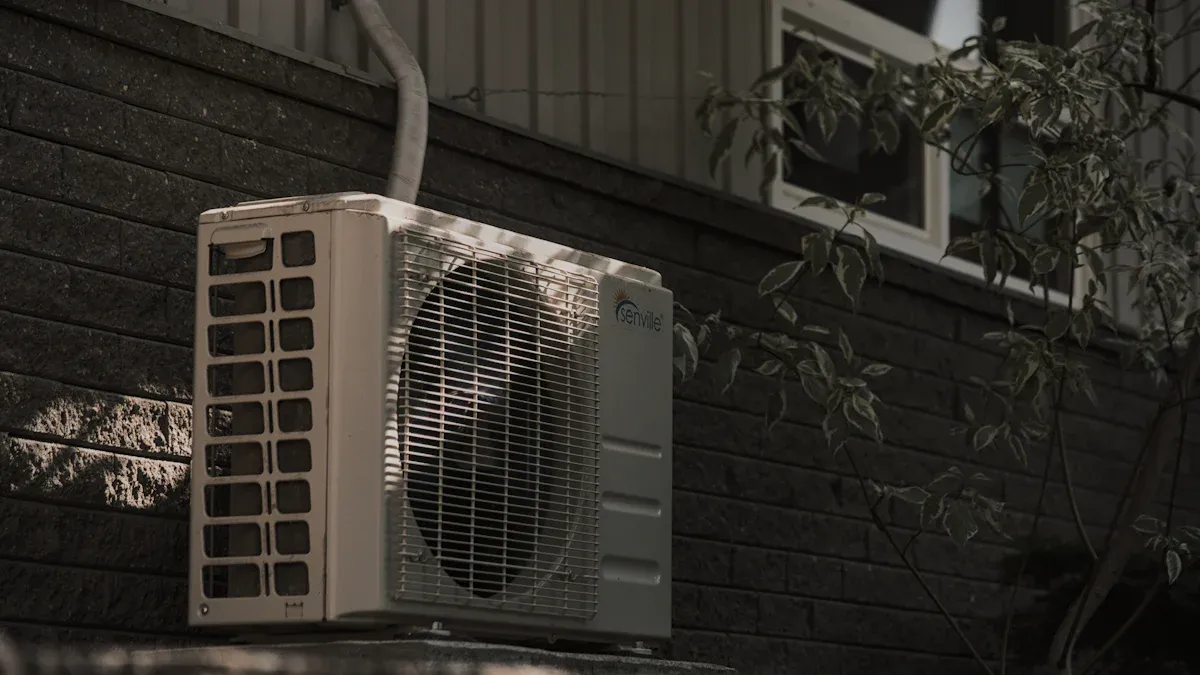

What Is a Copper Line Set for Air Conditioner?

Definition and Purpose

A copper line set is made of two copper tubes. These tubes connect the indoor and outdoor parts of an air conditioner. They help move refrigerant between the inside evaporator coil and the outside condenser coil. This process removes heat from your home and releases it outside.

The line set's job is to transfer heat efficiently. Copper is used because it moves heat quickly. This makes cooling faster and better. Copper tubes are also strong and handle high pressure well. This is important for modern air conditioners that use refrigerants like R-410A.

How the Line Set Facilitates Cooling

The copper line set helps refrigerant flow through the system. This flow is what cools your home. The refrigerant takes heat from indoor air as it passes through the evaporator coil. It then moves through the suction line, one of the two tubes, to the outdoor unit. There, the condenser coil releases the heat into the outside air.

The second tube, called the liquid line, brings cooled refrigerant back inside. This cycle of heat absorption and release keeps your home cool during hot days.

To understand how copper line sets improve cooling, here are some key ideas:

Principle	Description
Heat Transfer	Heat moves through conduction, convection, and materials like copper.
Material Conductivity	Copper transfers heat well, making it great for cooling.
Evaporator Function	Removes heat from indoor air, letting refrigerant absorb it.
Condenser Function	Releases heat outside, helping cool your home.
Factors Affecting Heat Transfer	Includes material thickness, size, temperature difference, and heat flow time.

Good copper line sets are important for efficient air conditioning. When installed and insulated properly, they reduce heat loss and keep refrigerant flowing smoothly. This improves cooling, lowers energy use, and saves money on electricity bills.

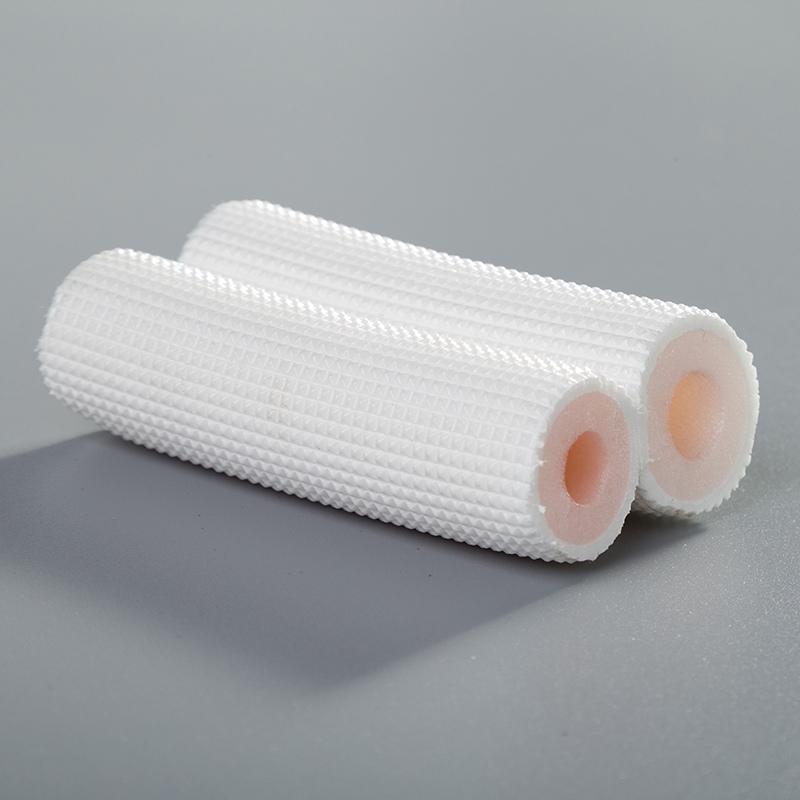

Components of a Line Set

The Suction Line and Its Function

The suction line is very important in cooling systems. It moves low-pressure refrigerant gas from inside to the outdoor condenser. This lets the refrigerant release the heat it took from your home.

A good suction line helps the system cool well. But if pressure drops, problems can happen:

Low pressure makes the refrigerant less dense, so the compressor works harder.
This raises the compression ratio, causing overheating and weaker cooling.
To avoid this, keep pressure drops below 3 PSI for R22 and 5 PSI for R410 refrigerants. Lower is always better for better performance.

Taking care of the suction line prevents compressor damage. It also keeps your air conditioner working smoothly.

The Liquid Line and Its Function

The liquid line is the second tube in the set. It carries high-pressure liquid refrigerant from the outdoor unit to the indoor coil. This refrigerant then absorbs heat from your home’s air.

The liquid line must stay clear of blockages or leaks. Any problem here can slow refrigerant flow and reduce cooling. The size and length of the line also matter. A properly sized line ensures the refrigerant reaches the coil at the right pressure and temperature.

When the liquid line works well, your air conditioner cools your home consistently, even on hot days.

Importance of Insulation in Line Sets

Insulation is key for line sets. It stops heat from moving between the refrigerant and the air around it. Without insulation, the suction line could absorb heat, making cooling less effective.

Insulated lines also stop condensation. Warm air touching the cold suction line can create moisture. This moisture can cause water damage or mold. Insulation keeps the line dry and protects your home.

Insulated lines also save energy. They reduce heat loss, making the air conditioner work less. This lowers energy bills and helps the system last longer.

Tip: Use line set covers to protect insulation. Covers guard against UV rays, weather, and wear, keeping the system working well for years.

Here’s a simple look at copper line set reliability based on grain orientation:

Grain Orientation	Percentage
(111)	35%
(100)	21%
(110)	14%
Other	30%

Copper with large grains lasts 14 times longer than small grains. This makes copper a strong and reliable choice for cooling systems.

Benefits of Copper Line Sets

Energy Efficiency and Reduced Heat Loss

Copper line sets help air conditioners use less energy. Their special insulation keeps the refrigerant at the right temperature. This reduces heat loss and improves cooling. Using less energy means lower electricity bills and helps the environment.

Copper is better than other materials for moving heat. Here are some examples:

High-efficiency motors need 25% more copper than regular ones.
Efficient transformers use 30% to 150% more copper, averaging 50% more.
Copper makes energy systems work better for power generation and delivery.

These features make copper a top choice for air conditioners. It ensures steady and effective cooling.

Durability and Corrosion Resistance

Copper line sets are strong and resist rust. This makes them last a long time in different conditions. Unlike plastic, which can crack or leak, copper stays tough under stress.

Evidence	Description
Corrosion Resistance	Copper doesn’t rust easily underground, staying durable.
Longevity	Copper has been used for over 2,500 years, proving its strength.
Strength	Copper handles stress better than plastic, which can break.

Choosing copper line sets keeps your air conditioner working well for years, even in tough environments.

Enhanced Performance and Longevity

Copper line sets improve how air conditioners work. They move heat quickly, keeping refrigerant flowing smoothly. This helps the system cool better and reduces wear on parts like the compressor.

Copper lasts a long time, so you won’t need many repairs or replacements. With good care, copper line sets can work for decades. They are strong and handle tough conditions, making them a reliable choice for cooling systems.

Tip: Check your line set often for damage to keep it working well for a long time.

Maintaining and Replacing Copper Line Sets

Spotting Damage or Wear

Keeping your lineset in good shape helps your air conditioner work well. Over time, damage or wear can lower its performance. Look for these signs to spot problems:

Refrigerant Leaks: If cooling is weak, there might be a leak.
Physical Damage: Look for dents, cracks, or rust on the copper tubes.
Reduced Cooling: If cooling drops, the lineset may not work right.

Checking your lineset often helps catch issues early. For example, copper tubing must keep at least 80% of its wall thickness after 20 years. This keeps it strong and prevents leaks.

Tips for Maintenance

Taking care of your lineset makes it last longer and keeps cooling efficient. Follow these steps to maintain it:

Inspect Often: Look for damage, rust, or worn insulation.
Clean the Tubes: Remove dirt to avoid clogs and keep refrigerant flowing.
Check Refrigerant Levels: Low levels can harm the system. Fix leaks quickly.
Prevent Rust: Use tin-lined copper in wet or corrosive areas.

A maintenance plan based on standards can help. For instance:

Metric/Consideration	Details
Corrosion Resistance	Tin-lined copper resists rust, lowering risks.
Structural Integrity	Copper tubing stays strong for 20 years, even with some rust.
Acceptable Wall Thickness	Wall thickness should stay above 80% after 20 years.

When to Replace

Sometimes, fixing the lineset isn’t enough. Replacement might be needed for better cooling. Here’s when to consider it:

Refrigerant Leaks: Frequent leaks mean it’s time for a new lineset.
System Upgrades: Switching to R-410A refrigerant needs a compatible lineset.
Severe Damage: Big dents or cracks require replacement.
Wrong Size: A poorly sized lineset reduces cooling. For example, a 3-ton system with a 50-foot line loses 7% cooling with 3/4-inch copper but only 2% with 7/8-inch copper.

Replacing the lineset during installation ensures it fits the new system. If the current one is in good shape and fits, you might not need a new one.

Criteria for Replacement	Description
Refrigerant Leak Issues	Replace if leaks happen often.
Compatibility with New Refrigerant	R-410A needs a new lineset.
Physical Damage	Replace if there’s visible damage.
Accessibility	Short, easy-to-reach linesets are simpler to replace.
Condition of Current Line Set	Good condition might mean no replacement is needed.

Tip: Always ask a professional for help during installation or replacement to ensure the right size and fit.

Copper line sets are important for air conditioners. They help move heat and keep cooling systems working well. Copper's ability to transfer heat and resist rust makes it great for preventing leaks and improving cooling. Special designs, like grooves inside the tubes, make energy use better by helping refrigerant flow and increasing heat transfer.

Taking care of line sets is very important. Check them often to find damage early. Replace old or damaged lines to keep your system running its best. These steps help your air conditioner last longer and lower energy bills.

Feature	Benefit
Heat Transfer Ability	Keeps cooling steady and improves how well it works.
Rust Resistance	Stops leaks and keeps the system safe to use.
Grooved Tube Design	Boosts heat transfer and makes refrigerant flow better.
Works with Different Refrigerants	Fits many refrigerants, making cooling more efficient.
Saves Money	Cuts costs and makes pipe setup easier with better heat transfer.

Using copper line sets and taking care of them gives you reliable cooling. This choice ensures your home stays comfortable for years.

FAQ

What do copper line sets do in a split air conditioner?

Copper line sets link the indoor and outdoor units. They move refrigerant, which helps transfer heat. This process cools your home by taking heat out and releasing it outside.

How can you spot refrigerant leaks in copper line sets?

Check for weaker cooling, hissing noises, or oily spots on the lines. These are signs of leaks. Regular checks can find problems early and keep your system working well.

Should you get a new line set for a mini split system?

Yes, it’s best to replace the line set. A new one works better with the refrigerant and avoids issues from old or damaged lines.

How does insulation help a ductless air conditioner work better?

Insulation stops heat from moving between the refrigerant and air. This keeps the refrigerant at the right temperature and improves cooling. It also stops moisture, protecting your home from water damage.

When should you replace your AC because of line set problems?

Replace your AC if the line set leaks often, is badly damaged, or doesn’t work with modern refrigerants like R-410A. A new system with a good line set cools better and uses less energy.
