The Importance of Copper Pipe Size in Air Conditioners

Baoyuan

·February 28, 2025

·12 min read

The Importance of Copper Pipe Size in Air Conditioners — Image Source: unsplash

When it comes to your air conditioner, the copper pipe size plays a bigger role than you might think. It’s not just about connecting parts; it’s about ensuring everything runs smoothly. The right size keeps refrigerant flowing efficiently, which helps your system cool your space effectively. Plus, it reduces energy waste and keeps your unit working longer. On the flip side, the wrong size can cause overheating, uneven cooling, and even expensive repairs. So, choosing the correct copper pipe size for air conditioner systems isn’t just a detail—it’s a game-changer.

Key Takeaways

Picking the right copper pipe size is very important. It helps refrigerant flow well and keeps your AC working properly.
Pipes that are too big or small can cause problems. These include overheating, bad cooling, and higher energy bills.
Copper pipes are great because they transfer heat well and don’t rust. This makes your HVAC system last longer and work better.
Always choose a pipe size that fits your AC’s power and refrigerant type. This stops problems and damage.
Ask experts or follow the maker’s instructions to install pipes correctly. This ensures your system works its best.

The Role of Copper Pipes in Air Conditioning Systems

Benefits of Copper Pipes

Superior thermal conductivity for efficient heat transfer

Copper pipes are a top choice for air conditioning systems because of their excellent thermal conductivity. They transfer heat efficiently, which is crucial for keeping your cooling system running smoothly. Compared to materials like aluminum or stainless steel, copper stands out with a thermal conductivity of 401 W/m·K. This means it minimizes energy loss and ensures your air conditioner performs at its best. Whether it's absorbing heat in the evaporator or releasing it in the condenser, copper pipes make the process seamless.

Resistance to corrosion for long-term reliability

One of the standout features of copper pipes is their corrosion resistance. They naturally form a protective oxide layer that shields them from environmental damage. This durability means you won’t have to worry about frequent replacements or leaks. Unlike plastic or other materials, copper pipes can handle chemical exposure without cracking, ensuring your air conditioning system stays reliable for years.

Flexibility for easier installation and adaptability

Copper pipes are not just strong—they’re also flexible. This flexibility makes installation easier, especially in tight spaces. It allows technicians to bend and shape the pipes without compromising their performance. Plus, their adaptability means they work well with various refrigerants, making them a versatile option for different air conditioning setups.

Functions of Copper Pipes in HVAC Systems

Transporting refrigerant between key components

Copper pipes play a vital role in moving refrigerant throughout your air conditioning system. They connect the outdoor and indoor units, ensuring the refrigerant flows smoothly. Supply pipes carry refrigerant to the evaporator coils, while return pipes (also called suction lines) bring it back to the compressor. This continuous cycle is what keeps your home cool and comfortable.

Supporting heat exchange for effective cooling and heating

Efficient heat transfer is at the heart of any air conditioning system, and copper pipes make it possible. Their high thermal conductivity allows them to absorb and release heat quickly. This efficiency ensures your system maintains consistent cooling and heating, giving you the comfort you need without wasting energy.

Maintaining system pressure and structural integrity

Copper pipes are built to handle high pressures and extreme temperatures. They maintain the structural integrity of your air conditioning system, preventing leaks or pressure drops. This reliability ensures your system operates smoothly, even under demanding conditions.

Why Copper Pipe Size for Air Conditioner Matters

Impact on Refrigerant Flow

Ensures smooth and efficient refrigerant circulation

The copper pipe size for air conditioner systems directly affects how well refrigerant flows through the system. When the pipes are properly sized, the refrigerant circulates smoothly, ensuring your air conditioning system operates efficiently. This smooth flow keeps your cooling consistent and prevents unnecessary strain on the compressor.

Oversized pipes reduce system efficiency

Bigger isn’t always better when it comes to copper pipes. Oversized pipes can hold more refrigerant than necessary, which reduces system efficiency. For example, a 5/8" pipe can carry 11.3 lbs. of R22 refrigerant over 100 feet, while a 1/2" pipe carries only 7 lbs. This extra capacity might sound good, but it can lead to slower refrigerant movement and less effective cooling.

Undersized pipes cause pressure drops and overheating

On the flip side, undersized pipes can cause serious problems. Smaller pipes increase pressure drop, forcing the compressor to work harder. This added strain can lead to overheating and even system failure. For instance, using a smaller pipe with R410A refrigerant can reduce its carrying capacity by 3.4 lbs. over 100 feet, which impacts performance significantly.

Effect on Heat Transfer

Optimizes heat exchange for consistent cooling

The right copper pipe size ensures efficient heat exchange, which is essential for consistent cooling. Properly sized aircon copper pipes allow the refrigerant to absorb and release heat effectively. This keeps your home at a comfortable temperature without sudden fluctuations.

Improper sizing leads to uneven temperature control

When copper pipes are too large or too small, the heat transfer process suffers. This can result in uneven cooling, with some areas of your home feeling too warm while others are too cold. Choosing the correct copper pipe size for air conditioner systems helps avoid these issues and keeps your cooling reliable.

Influence on Energy Efficiency

Minimizes energy loss and reduces operational costs

Copper pipes improve performance by minimizing energy loss. When the pipe size matches your system’s requirements, the refrigerant flows efficiently, reducing the energy needed to cool your space. This not only improves energy efficiency but also lowers your electricity bills, offering long-term savings.

Incorrect sizing increases energy consumption

Improperly sized copper piping can lead to higher energy consumption. If the pipes are too small, the compressor works overtime, consuming more power. If they’re too large, the system struggles to maintain pressure, wasting energy. By selecting the right size, you ensure your air conditioning system runs efficiently and avoids unnecessary energy costs.

Factors to Consider When Choosing Copper Pipe Size for Air Conditioning

System Requirements

Matching pipe size to the air conditioner’s capacity

Choosing the right aircon copper pipes starts with matching the pipe size to your air conditioner’s capacity. This ensures your system operates efficiently and avoids unnecessary strain. Here’s what you should consider:

Look for copper pipes that meet quality standards and specifications.
Pay attention to the diameter and wall thickness, as these affect refrigerant flow.
Factor in the cooling capacity of your air conditioning system and the available installation space.
Opt for reputable brands to ensure durability and strength.

By focusing on these details, you’ll set your system up for success and enjoy consistent cooling performance.

Considering refrigerant type and volume

The type and volume of refrigerant in your system also play a big role in selecting the right pipe size. Different refrigerants require specific pipe dimensions to maintain efficiency. Take a look at this table for a quick reference:

Refrigerant Type	Pipe Size	Refrigerant Volume (100 feet)
R22	1/2"	7 Lbs.
R22	5/8"	11.3 Lbs.
R410A	1/2"	5.8 Lbs.
R410A	5/8"	9.2 Lbs.

Using the correct pipe size for your refrigerant ensures smooth operation and prevents issues like leaks or pressure drops.

Pressure Levels

Ensuring pipes withstand operating pressure

High-pressure air conditioning systems demand pipes that can handle the load. Copper piping is an excellent choice because of its durability and strength. It resists cracking under pressure, ensuring your system runs smoothly even during peak performance. Always check the pressure rating of the pipes to match your system’s requirements.

Avoiding pressure drops that compromise performance

Pressure drops can disrupt refrigerant flow and reduce energy efficiency. Undersized pipes are often the culprit, forcing your compressor to work harder. To avoid this, choose aircon copper pipes that maintain consistent pressure throughout the system. This keeps your cooling reliable and prevents unnecessary wear on your equipment.

Compatibility with HVAC Components

Ensuring proper fit with compressors, condensers, and evaporators

Copper pipes must fit seamlessly with key HVAC components like compressors, condensers, and evaporators. Their adaptability makes them ideal for various air conditioning systems. They also resist corrosion, which is crucial for long-term reliability. This compatibility ensures your system operates efficiently without frequent maintenance issues.

Following manufacturer guidelines for specifications

Always follow the manufacturer’s guidelines when selecting copper piping. These specifications are designed to optimize performance and ensure compatibility with your system. By sticking to these recommendations, you’ll avoid common pitfalls and extend the lifespan of your air conditioning system.

Pro Tip: Properly sized copper pipes not only improve energy efficiency but also enhance the heat transfer properties of your system, giving you consistent cooling and peace of mind.

Common Mistakes in Copper Pipe Sizing for Air Conditioning Systems

Using One-Size-Fits-All Pipes

Ignoring specific system requirements

Using one-size-fits-all copper pipes might seem convenient, but it often leads to trouble. Every air conditioning system has unique requirements, and ignoring them can cause inefficiencies. For instance:

Copper pipe leakage becomes a major risk. This can lead to refrigerant loss, which may cause your air conditioner to fail.
Manufacturing defects, like undetected flaws, can weaken the pipes.
Some pipes may not meet quality standards, increasing the chances of leaks.

By choosing pipes tailored to your system, you avoid these issues and ensure reliable performance.

Leading to inefficiencies and potential damage

When you use the wrong pipe size, your system struggles to maintain efficiency. Oversized pipes can hold too much refrigerant, while undersized ones can cause pressure drops. Both scenarios put extra strain on your air conditioner, leading to wear and tear. Over time, this can result in costly repairs or even system failure.

Overlooking Refrigerant Type

Different refrigerants require specific pipe sizes

Not all refrigerants are the same. Each has unique properties like pressure, temperature, and viscosity. Your copper piping must match these characteristics to work effectively. For example, R410A operates at higher pressures than R22, so it needs pipes that can handle the load. Ignoring this can compromise your system’s performance.

Mismatched sizing can cause leaks or system failure

Using the wrong pipe size for your refrigerant can lead to several problems:

Excessive pressure drops reduce efficiency and cooling capacity.
Oversized pipes increase refrigerant volume, causing operational issues.
Undersized pipes may lead to refrigerant flashing, starving the evaporator.
Improper suction line sizing can hinder oil return or cause capacity loss.

These issues not only affect cooling but also shorten the lifespan of your system.

Neglecting Installation Best Practices

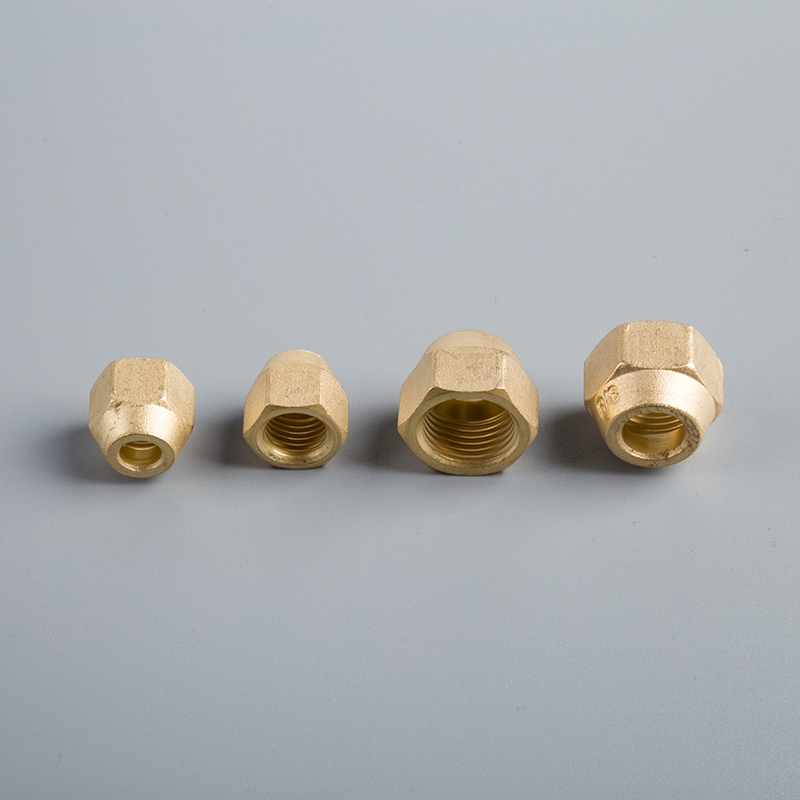

Poor connections and fittings compromise performance

Even the best copper pipes won’t perform well if installed incorrectly. To ensure proper connections:

Cut the tubing squarely and remove burrs to prevent leaks.
Inspect fittings for damage before installation.
Hand-tighten nuts first, then use two wrenches to secure them without twisting the pipe.
Follow the manufacturer’s torque specifications for a secure fit.

These steps help maintain the strength and integrity of your system.

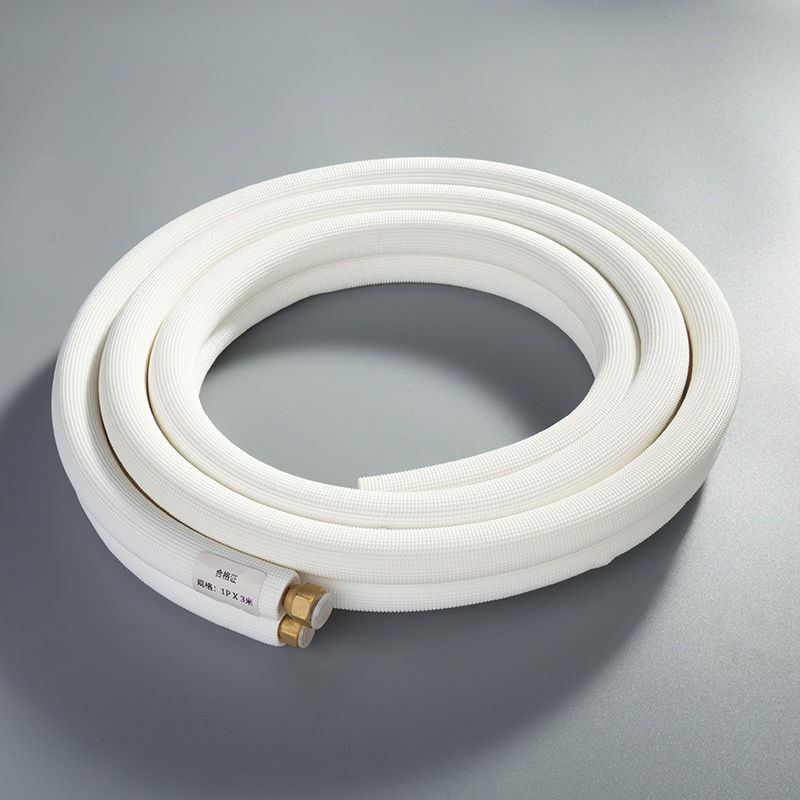

Improper insulation leads to energy loss

Insulating your copper pipes is just as important as sizing them correctly. Without insulation, the pipes absorb heat, forcing your air conditioner to work harder. This increases energy consumption and reduces efficiency. Proper insulation not only prevents energy loss but also contributes to long-term savings by lowering your electricity bills. Plus, it supports the environmental benefits of copper pipes by reducing waste.

Getting the copper pipe size right is essential for your air conditioner’s performance and longevity. Proper sizing ensures smooth refrigerant flow, better heat transfer, and lower energy bills. It also protects your system from unnecessary wear and tear.

Why consult professionals or guidelines?

Copper pipes are durable, resist corrosion, and adapt to various HVAC designs.
Their ductility allows for easy installation and adjustments, ensuring a perfect fit.

By choosing the correct size and following expert advice, you’ll enjoy a reliable, efficient, and long-lasting cooling system.

FAQ

What happens if I use the wrong copper pipe size in my HVAC system?

Using the wrong size can cause refrigerant flow issues, pressure drops, or overheating. This leads to inefficiencies, higher energy bills, and potential damage to your HVAC system. Always match the pipe size to your system’s requirements for optimal performance.

How do I know the correct copper pipe size for my air conditioner?

Check your air conditioner’s specifications or consult the manufacturer’s guidelines. These will indicate the ideal pipe size based on your HVAC system’s capacity, refrigerant type, and pressure levels. A professional HVAC technician can also help you make the right choice.

Can I use the same copper pipes for all HVAC systems?

No, different HVAC systems have unique requirements. Factors like refrigerant type, operating pressure, and system capacity determine the pipe size. Using one-size-fits-all pipes can lead to inefficiencies and damage. Always choose pipes tailored to your specific system.

Why is insulation important for copper pipes in HVAC systems?

Insulation prevents heat gain or loss in the pipes, ensuring your HVAC system operates efficiently. Without insulation, energy loss increases, forcing your system to work harder. Proper insulation also reduces energy bills and enhances the system’s lifespan.

Should I hire a professional to install copper pipes for my HVAC system?

Yes, professional installation ensures the pipes are correctly sized, fitted, and insulated. Poor installation can lead to leaks, pressure drops, and reduced efficiency. A certified HVAC technician ensures your system runs smoothly and avoids costly repairs.
