What Are Pre-Insulated Copper Line Sets

Baoyuan

·December 3, 2024

·20 min read

What Are Pre-Insulated Copper Line Sets — Image Source: pexels

HVAC Line Sets Pre-Insulated Copper Piping are essential components in modern HVAC systems. These specialized copper pipes come with built-in insulation, ensuring efficient refrigerant transport. The insulation minimizes heat loss, helping the refrigerant maintain its temperature as it moves between indoor and outdoor units. This design not only enhances energy efficiency but also protects the system from environmental factors like moisture and temperature fluctuations. By using HVAC Line Sets Pre-Insulated Copper Piping, you ensure optimal HVAC performance, reduced energy consumption, and long-term durability.

Key Takeaways

Pre-insulated copper line sets enhance HVAC efficiency by minimizing heat loss during refrigerant transport, leading to lower energy consumption.
These line sets are durable and resistant to corrosion, ensuring long-term reliability and reducing the need for frequent repairs or replacements.
The built-in insulation simplifies installation, saving time and reducing overall costs by eliminating the need for additional insulation materials.
Using pre-insulated copper line sets contributes to sustainable HVAC practices by lowering energy usage and reducing your carbon footprint.
Regular inspections and proper handling during installation can extend the lifespan of your line sets, ensuring consistent HVAC performance.
Pre-insulated copper line sets are versatile and compatible with various HVAC systems, making them a practical choice for both residential and commercial applications.

Understanding HVAC Line Sets Pre-Insulated Copper Piping

What Are Pre-Insulated Copper Line Sets?

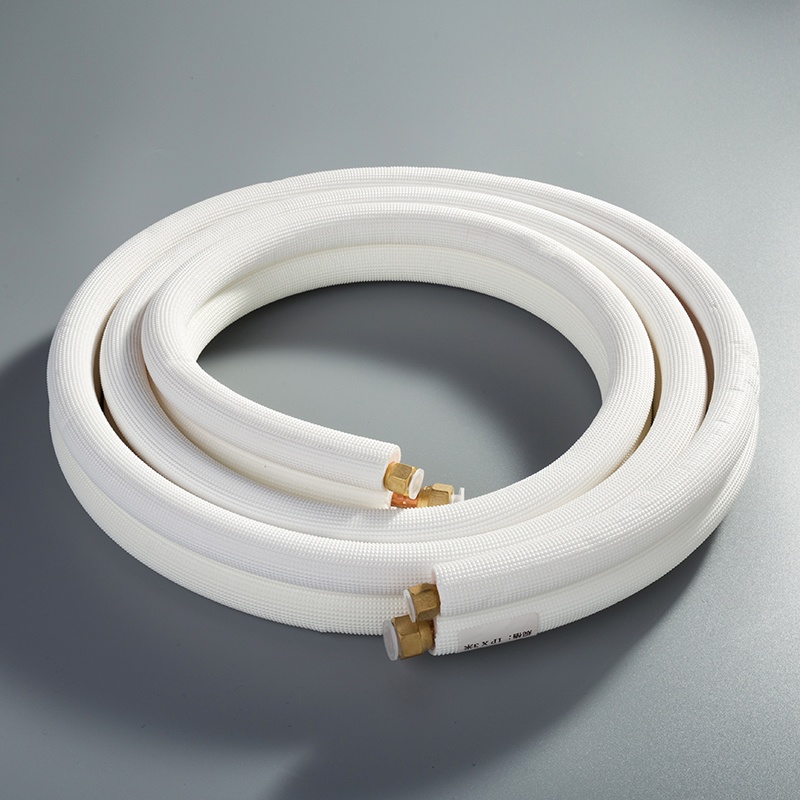

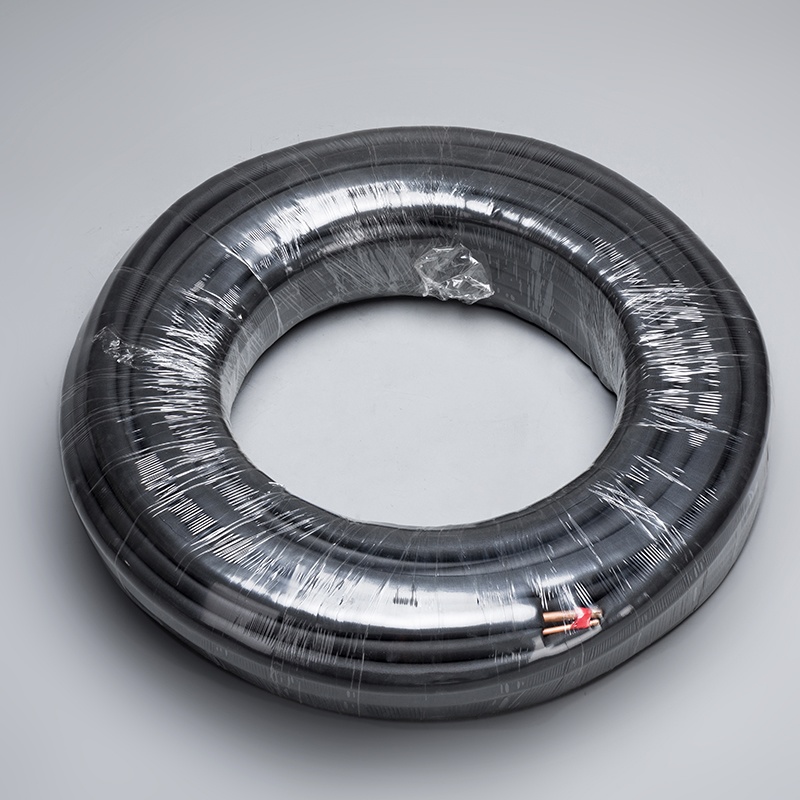

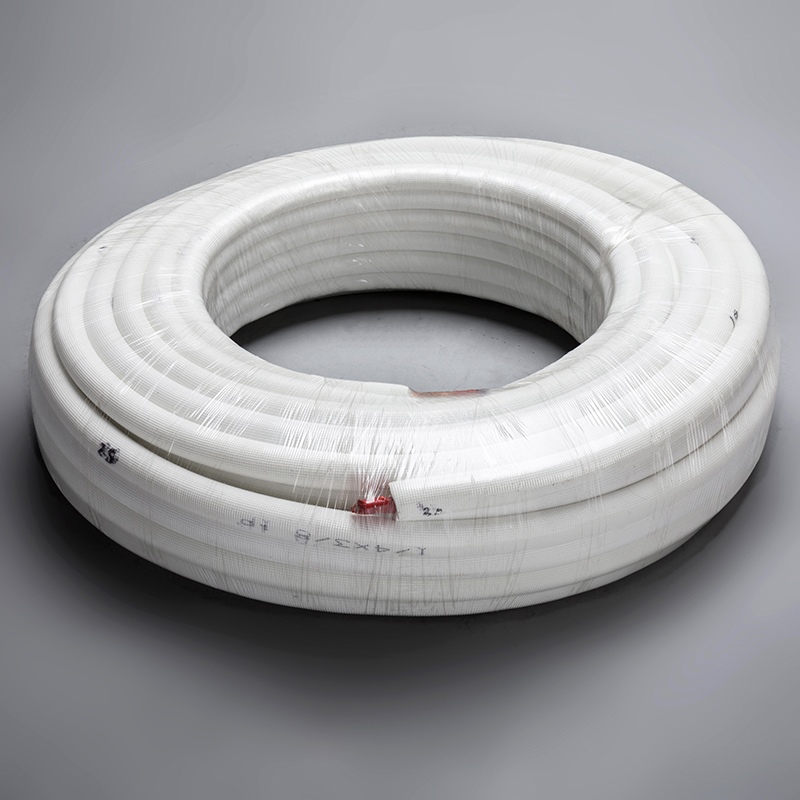

Pre-insulated copper line sets are essential components of modern HVAC systems. These line sets consist of copper tubing with built-in insulation, designed to transport refrigerant between the indoor and outdoor units of your HVAC system. The insulation ensures that the refrigerant maintains its temperature during transit, which improves energy efficiency and system performance. By using these specialized line sets, you can reduce energy loss and protect your HVAC system from environmental factors like moisture and temperature changes.

These line sets are often made from low-carbon copper, a material known for its excellent heat transfer properties and resistance to corrosion. This makes them durable and reliable for long-term use. Whether you are installing a new air conditioning system or upgrading an existing one, pre-insulated copper line sets provide a practical and efficient solution.

Key Components of Pre-Insulated Copper Line Sets

Copper Tubing

The copper tubing in these line sets serves as the primary pathway for refrigerant flow. Copper is widely used in HVAC systems due to its superior thermal conductivity and durability. It efficiently transfers heat, ensuring optimal cooling or heating performance. Additionally, copper's natural resistance to corrosion enhances the longevity of the line sets, making it a dependable choice for both residential and commercial applications.

Insulation Material

The insulation material is a critical component that wraps around the copper tubing. It minimizes heat exchange between the refrigerant and the surrounding environment, helping the system maintain consistent temperatures. This not only improves energy efficiency but also prevents issues like condensation, which can lead to moisture damage. High-quality insulation materials are designed to withstand extreme temperatures, ensuring reliable performance in various climates.

Protective Outer Layer

The protective outer layer shields the line set from external damage. It acts as a barrier against physical impacts, UV rays, and harsh weather conditions. This layer enhances the durability of the line set, ensuring it remains intact and functional over time. By protecting the inner components, the outer layer contributes to the overall efficiency and lifespan of your HVAC system.

Common Applications in HVAC Systems

Pre-insulated copper line sets are versatile and suitable for a wide range of HVAC applications. You will commonly find them in:

Residential HVAC Systems: These line sets are ideal for home air conditioning and heating systems, ensuring efficient and reliable performance.
Commercial HVAC Systems: In larger buildings, such as offices or retail spaces, these line sets support high-capacity HVAC systems by maintaining consistent refrigerant flow.
Ductless Mini-Split Systems: Pre-insulated copper line sets are a popular choice for mini-split installations due to their ease of use and compatibility with these systems.
Heat Pumps: These line sets work seamlessly with heat pumps, providing efficient heating and cooling solutions for various environments.

By incorporating pre-insulated copper line sets into your HVAC system, you can enhance its efficiency, reduce energy costs, and ensure long-term reliability.

How Pre-Insulated Copper Line Sets Work

Refrigerant Transport and Insulation

Pre-insulated copper line sets play a vital role in ensuring your HVAC system operates efficiently. These line sets transport refrigerant between the indoor and outdoor units while maintaining its temperature. The built-in insulation minimizes heat loss or gain during this process, which directly improves energy efficiency. By reducing thermal exchange, the refrigerant remains at the optimal temperature, allowing your HVAC system to deliver consistent cooling or heating.

The insulation also prevents condensation from forming on the copper tubing. Without proper insulation, condensation can lead to moisture buildup, which may damage surrounding components. By using pre-insulated copper line sets, you protect your system from these risks while enhancing its overall performance. This design not only ensures efficient refrigerant transport but also contributes to the longevity of your HVAC equipment.

Line Set Protection Against External Factors

Moisture and Condensation

Moisture can significantly impact the performance of your HVAC system. Pre-insulated copper line sets include a protective layer that acts as a barrier against moisture. This feature prevents condensation from forming on the copper tubing, which could otherwise lead to corrosion or water damage. By keeping moisture at bay, these line sets maintain their structural integrity and ensure reliable operation over time.

Temperature Fluctuations

Extreme temperature changes can affect the efficiency of your HVAC system. The insulation in pre-insulated copper line sets helps regulate the temperature of the refrigerant, even in harsh weather conditions. This stability ensures that your system operates at peak efficiency, regardless of external temperatures. By minimizing the impact of temperature fluctuations, you reduce energy consumption and improve the overall performance of your HVAC system.

Corrosion and Physical Damage

Copper is naturally resistant to corrosion, but exposure to environmental factors like moisture and oxygen can still cause degradation over time. Pre-insulated copper line sets include a durable outer layer that shields the tubing from these elements. This protective layer also guards against physical damage, such as impacts or abrasions, which could compromise the line set's functionality. By investing in pre-insulated copper line sets, you ensure long-term durability and reduce the need for frequent repairs or replacements.

Benefits of HVAC Line Sets Pre-Insulated Copper Piping

Enhanced Energy Efficiency

Pre-insulated copper line sets significantly improve the energy efficiency of your HVAC system. The built-in insulation minimizes heat loss during refrigerant transportation, ensuring that the refrigerant maintains its optimal temperature. This efficient thermal management reduces the workload on your HVAC system, leading to lower energy consumption. Unlike traditional line sets, which lack insulation and allow heat exchange with the environment, pre-insulated copper line sets help you achieve consistent performance while reducing energy waste. By choosing these advanced line sets, you can enjoy a more sustainable and cost-effective HVAC solution.

Improved Durability and Longevity

Durability is a key advantage of pre-insulated copper line sets. Made from low-carbon copper, these line sets resist corrosion and withstand extreme temperatures. The protective outer layer shields the copper tubing from physical damage, moisture, and environmental wear. This robust design ensures long-term reliability, reducing the need for frequent replacements or repairs. Traditional line sets, in contrast, often degrade over time due to exposure to harsh conditions, leading to higher maintenance costs. With pre-insulated copper line sets, you invest in a solution that supports the longevity of your HVAC system and minimizes disruptions.

Simplified Installation Process

Pre-insulated copper line sets streamline the installation process, saving you time and effort. These line sets come pre-cut and pre-insulated, eliminating the need for additional materials or labor-intensive insulation work. Their ready-to-use design allows for quicker and more efficient installation, whether you are setting up a new HVAC system or upgrading an existing one. Traditional line sets require separate insulation, which increases installation complexity and costs. By opting for pre-insulated copper line sets, you simplify the process and reduce overall installation expenses, contributing to long-term cost savings.

Cost Savings Over Time

Pre-insulated copper line sets offer significant cost savings over time, making them a smart investment for your HVAC system. Their built-in insulation reduces energy consumption by minimizing heat loss during refrigerant transportation. This efficiency lowers your utility bills, allowing you to save money month after month. Unlike traditional line sets, which lack insulation and lead to higher energy costs, pre-insulated options ensure consistent performance without unnecessary energy waste.

The durability of pre-insulated copper line sets also contributes to long-term savings. Made from low-carbon copper, these line sets resist corrosion and withstand extreme temperatures. Their robust design reduces the need for frequent repairs or replacements, cutting down on maintenance expenses. Traditional line sets, in contrast, often degrade over time, requiring costly upkeep and replacements. By choosing pre-insulated copper line sets, you avoid these recurring costs and enjoy a more reliable HVAC system.

Additionally, the simplified installation process of pre-insulated copper line sets saves you money upfront. These line sets come pre-cut and pre-insulated, reducing labor costs and the need for additional materials. This ready-to-use design ensures a quicker and more efficient installation, whether you are upgrading an existing system or setting up a new one. Over time, the combination of lower energy bills, reduced maintenance, and streamlined installation makes pre-insulated copper line sets a cost-effective solution for your HVAC needs.

Contribution to Sustainable HVAC Practices

Pre-insulated copper line sets play a vital role in promoting sustainable HVAC practices. Their energy-efficient design helps reduce your carbon footprint by lowering energy consumption. By minimizing heat loss during refrigerant transport, these line sets ensure that your HVAC system operates efficiently, using less energy to maintain optimal performance. This reduction in energy usage not only benefits the environment but also aligns with global efforts to combat climate change.

The use of low-carbon copper in these line sets further enhances their sustainability. Copper is a recyclable material, making it an eco-friendly choice for HVAC systems. Its durability ensures long-term use, reducing waste generated by frequent replacements. Traditional line sets, which often require more frequent maintenance and replacement, contribute to higher levels of waste and resource consumption. By opting for pre-insulated copper line sets, you support a more sustainable approach to HVAC system design and operation.

Moreover, the insulation in these line sets prevents issues like condensation and moisture damage, which can lead to inefficiencies and increased energy use. By maintaining the integrity of your HVAC system, pre-insulated copper line sets help you achieve consistent performance while minimizing environmental impact. Choosing these advanced line sets reflects a commitment to sustainability, ensuring that your HVAC system operates efficiently and responsibly for years to come.

Installation and Compatibility of Pre-Insulated Copper Line Sets

Ease of Installation

Pre-cut and Pre-insulated Design

Pre-insulated copper line sets simplify the installation process significantly. These line sets come pre-cut to standard lengths and pre-insulated, eliminating the need for additional preparation. You can save time and effort by using these ready-to-use components. The built-in insulation ensures consistent quality, reducing the chances of errors during installation. This design makes it easier for you to set up your HVAC system efficiently, whether you are working on a new installation or upgrading an existing one.

Reduced Need for Additional Materials

With pre-insulated copper line sets, you no longer need to purchase separate insulation materials. The insulation is already integrated into the line set, which reduces the number of materials required for the job. This feature not only lowers your overall costs but also minimizes waste. By choosing these insulated line sets, you streamline the installation process and avoid the hassle of sourcing extra components. This approach ensures a faster and more cost-effective setup for your HVAC system.

Compatibility with Residential and Commercial HVAC Systems

Pre-insulated copper line sets are versatile and compatible with a wide range of HVAC systems. Whether you are installing a residential air conditioning unit or a commercial HVAC system, these line sets provide a reliable solution. Their design accommodates various system sizes and configurations, making them suitable for both small-scale and large-scale applications. You can use them in homes, offices, retail spaces, and even industrial settings. This adaptability ensures that you can rely on these line sets regardless of the type of HVAC system you are working with.

Common Installation Challenges and Solutions

Even with their user-friendly design, the installation of line set protection may present some challenges. Understanding these potential issues and their solutions can help you achieve a smooth installation process.

Challenge: Limited Access to Tight Spaces
Installing insulated line sets in confined areas can be difficult. Tight spaces may restrict movement and make it hard to position the line sets correctly.
Solution: Use flexible tools and plan the layout in advance. Pre-insulated line sets are easier to maneuver, which helps you navigate tight spaces more effectively.
Challenge: Ensuring Proper Connections
Improper connections can lead to refrigerant leaks and reduced efficiency.
Solution: Double-check all connections during installation. Follow the manufacturer’s guidelines to ensure a secure and leak-free setup.
Challenge: Protecting the Insulation During Installation
The insulation material may get damaged if not handled carefully.
Solution: Handle the line sets with care and avoid dragging them across rough surfaces. The protective outer layer provides added durability, but careful handling ensures the insulation remains intact.

By addressing these challenges proactively, you can ensure a successful installation and maximize the benefits of your HVAC insulated line set.

Maintenance and Longevity of Pre-Insulated Copper Line Sets

Minimal Maintenance Requirements

Pre-insulated copper line sets require very little maintenance, making them a practical choice for HVAC systems. The built-in insulation and durable materials reduce the need for frequent upkeep. You can rely on their robust design to withstand environmental factors like moisture, temperature changes, and physical wear. This low-maintenance feature saves you time and effort while ensuring consistent performance.

The copper tubing used in these line sets offers excellent corrosion resistance, which further minimizes the need for regular intervention. The protective outer layer shields the insulation and tubing from damage, ensuring long-term reliability. By choosing pre-insulated copper line sets, you invest in a solution that simplifies maintenance without compromising efficiency.

Tips for Ensuring Longevity

To maximize the lifespan of your pre-insulated copper line sets, follow these essential tips:

Regular Inspections

Performing regular inspections helps you identify potential issues before they escalate. Check the line sets for signs of wear, such as cracks in the insulation or damage to the outer layer. Look for any refrigerant leaks or unusual system performance, as these could indicate problems with the line sets. By addressing minor issues early, you can prevent costly repairs and extend the life of your HVAC system.

Proper Handling During Installation

Proper handling during installation plays a crucial role in ensuring the longevity of your line sets. Avoid dragging the line sets across rough surfaces, as this can damage the insulation or protective outer layer. Use appropriate tools and techniques to secure the line sets without applying excessive force. Careful installation reduces the risk of future wear and tear, allowing your HVAC system to operate efficiently for years.

Signs of Wear and When to Replace

Over time, even the most durable line sets may show signs of wear. Knowing what to look for can help you determine when replacement is necessary:

Cracked or Damaged Insulation: If the insulation appears cracked, torn, or worn out, it may no longer provide adequate thermal protection. This can lead to energy loss and reduced system efficiency.
Corrosion on Copper Tubing: Although copper resists corrosion, prolonged exposure to moisture or harsh conditions can cause degradation. Visible corrosion indicates that the line set may need replacement.
Refrigerant Leaks: Leaks can occur due to damage or wear in the tubing. If you notice refrigerant levels dropping or your HVAC system struggling to maintain temperature, inspect the line sets for leaks.
Physical Damage: Dents, bends, or other physical damage to the line sets can compromise their functionality. Damaged line sets may not transport refrigerant effectively, leading to reduced system performance.

Replacing worn or damaged line sets promptly ensures that your HVAC system continues to operate efficiently. By staying vigilant and addressing issues as they arise, you can maintain the performance and longevity of your pre-insulated copper line sets.

Why Pre-Insulated Copper Line Sets Are Essential for HVAC Systems

Contribution to Energy Efficiency Goals

Pre-insulated copper line sets play a pivotal role in achieving energy efficiency in HVAC systems. These line sets ensure that refrigerant maintains its optimal temperature as it travels between the indoor and outdoor units. By minimizing heat loss or gain, they reduce the workload on your HVAC system, allowing it to operate more efficiently. This efficiency translates into lower energy consumption, which directly supports energy-conscious goals.

The built-in insulation of these line sets eliminates the need for additional materials, ensuring consistent thermal performance. According to HVAC professionals, proper insulation not only enhances efficiency but also prolongs the lifespan of your system. When you invest in pre-insulated copper line sets, you contribute to a more sustainable and energy-efficient future.

Reducing Environmental Impact

Using pre-insulated copper line sets significantly reduces the environmental impact of HVAC systems. These line sets help lower energy consumption, which decreases greenhouse gas emissions. By choosing this advanced solution, you actively support global efforts to combat climate change.

Copper, the primary material in these line sets, is recyclable and environmentally friendly. Its durability ensures long-term use, reducing waste generated by frequent replacements. Additionally, the insulation prevents issues like condensation and moisture damage, which can lead to inefficiencies and increased energy use. By maintaining the integrity of your HVAC system, pre-insulated copper line sets help you minimize your carbon footprint while ensuring reliable performance.

Long-Term Cost Benefits for Homeowners and Businesses

Pre-insulated copper line sets offer substantial cost benefits over time. Their energy-efficient design reduces utility bills by lowering the energy required to maintain optimal HVAC performance. This efficiency ensures that you save money month after month, making these line sets a cost-effective choice for both homeowners and businesses.

Durability is another factor that contributes to long-term savings. The copper tubing resists corrosion, while the protective outer layer shields the line sets from physical damage. This robust construction minimizes the need for repairs or replacements, reducing maintenance costs. HVAC professionals emphasize the importance of line set protection in ensuring system longevity and reliability. By investing in pre-insulated copper line sets, you avoid recurring expenses and enjoy a dependable HVAC system for years.

The simplified installation process also saves you money upfront. These line sets come pre-cut and pre-insulated, reducing labor costs and the need for additional materials. Whether you are upgrading an existing system or installing a new one, pre-insulated copper line sets provide a practical and economical solution.

Pre-insulated copper line sets redefine HVAC efficiency. These specialized components ensure refrigerant maintains its temperature, reducing energy loss and enhancing system performance. Their durable design minimizes maintenance needs and extends the lifespan of your HVAC system. By using these line sets, you lower energy consumption, cut costs, and contribute to a sustainable future.

"Insulated line sets minimize heat loss during refrigerant transportation, resulting in improved energy efficiency and reduced energy consumption."

Consider pre-insulated copper line sets for your HVAC needs. They offer a practical, cost-effective solution that ensures long-term reliability and optimal performance.

FAQ

What are pre-insulated copper line sets used for?

Pre-insulated copper line sets transport refrigerant between the indoor and outdoor units of HVAC systems. They ensure the refrigerant maintains its temperature, which helps your system operate efficiently. These line sets also protect the copper tubing from environmental factors like moisture, temperature changes, and physical damage.

How do pre-insulated copper line sets increase efficiency?

The built-in insulation minimizes heat loss or gain during refrigerant transport. This ensures the refrigerant stays at the optimal temperature, reducing the workload on your HVAC system. By maintaining consistent thermal performance, these line sets help your system use less energy, which lowers utility bills and enhances overall efficiency.

Why is line set protection important?

Line set protection is crucial for maintaining the durability and performance of your HVAC system. It shields the copper tubing from moisture, UV rays, and physical impacts. This protection prevents issues like corrosion, condensation, and damage, ensuring your system operates reliably over time.

What are the benefits of line set protection?

The benefits of line set protection include enhanced energy efficiency, reduced maintenance needs, and extended system lifespan. By protecting and insulating the copper tubing, you prevent energy loss and avoid costly repairs. This ensures your HVAC system delivers consistent performance while saving you money in the long run.

Can pre-insulated copper line sets be used in all HVAC systems?

Yes, pre-insulated copper line sets are compatible with a wide range of HVAC systems. Whether you have a residential air conditioning unit, a commercial HVAC system, or a ductless mini-split, these line sets provide a reliable solution. Their versatile design makes them suitable for various applications.

How do pre-insulated copper line sets protect against moisture?

The insulation and protective outer layer create an airtight seal around the copper tubing. This prevents moisture from reaching the tubing, which reduces the risk of corrosion and water damage. By keeping moisture out, these line sets maintain their structural integrity and ensure long-term reliability.

Are pre-insulated copper line sets easy to install?

Yes, these line sets simplify installation. They come pre-cut and pre-insulated, so you don’t need additional materials or extensive preparation. This ready-to-use design saves time and effort, making the installation process quicker and more efficient.

How can I maintain pre-insulated copper line sets?

Minimal maintenance is required for pre-insulated copper line sets. Regular inspections help you identify any signs of wear, such as cracks in the insulation or physical damage. Proper handling during installation also ensures the insulation and protective layers remain intact, extending the lifespan of the line sets.

What signs indicate that I need to replace my line sets?

You should replace your line sets if you notice cracked or damaged insulation, visible corrosion on the copper tubing, refrigerant leaks, or physical damage like dents or bends. Addressing these issues promptly ensures your HVAC system continues to operate efficiently.

How do pre-insulated copper line sets contribute to sustainability?

These line sets reduce energy consumption by maintaining refrigerant temperature, which lowers your carbon footprint. The use of recyclable low-carbon copper and durable materials minimizes waste and supports sustainable HVAC practices. By choosing pre-insulated copper line sets, you contribute to a more eco-friendly future.
