Understanding the Main Parts of an Air Conditioner

Baoyuan

·February 28, 2025

·9 min read

Understanding the Main Parts of an Air Conditioner — Image Source: unsplash

Did you know that 90% of U.S. households use air conditioning? This emphasizes the importance of understanding your air conditioning system. Essential air conditioner parts, such as the evaporator coil, compressor, and condenser coil, work in harmony to keep your home comfortable. Familiarizing yourself with these air conditioner parts can help you maintain your unit and address potential issues more effectively.

Key Takeaways

Learn about main AC parts like the evaporator coil, compressor, and condenser coil to keep it working well.
Change your air filter often to boost airflow, clean indoor air, and save on energy bills.
Think about getting a smart thermostat for easier temperature control, saving energy, and making your AC last longer.

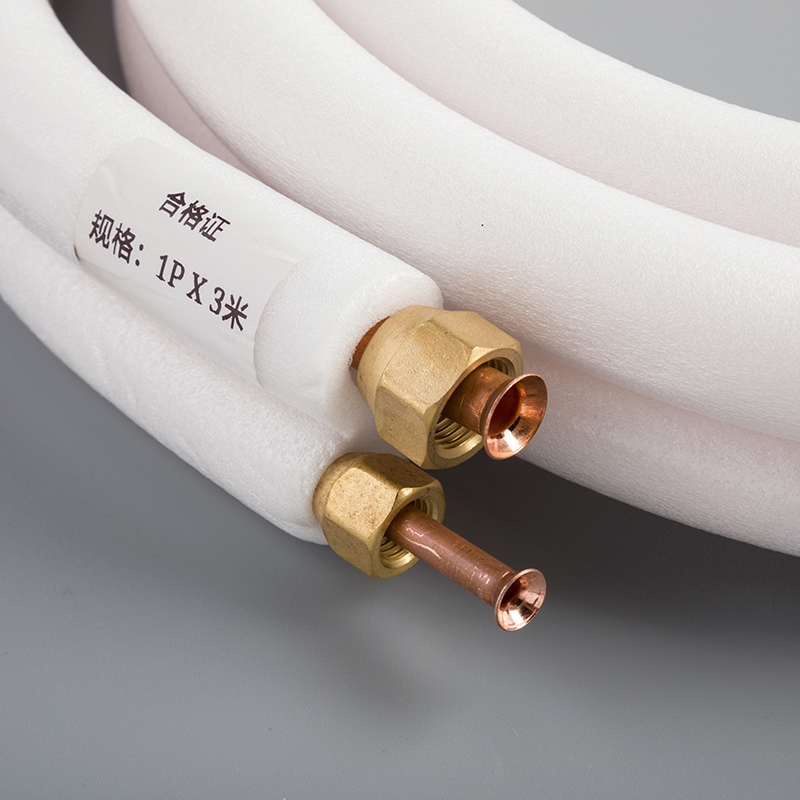

The Main Parts of an Air Conditioner

Evaporator Coil

The evaporator coil is one of the most critical air conditioner components. It’s located inside your home, often referred to as the indoor evaporator. This coil cools the air by pulling in warm air and passing it over a low-pressure refrigerant. As the refrigerant absorbs heat, it changes from a liquid to a vapor, creating the cooling effect you feel. The evaporator coil also reduces humidity by condensing water vapor from the air. This dual function—cooling and dehumidifying—makes it essential for maintaining a comfortable indoor environment.

Compressor

The compressor is the heart of your AC system. It’s found in the outdoor condenser unit and plays a vital role in the cooling process. The compressor pressurizes the refrigerant, raising its temperature and pressure. This step is crucial because it allows the refrigerant to release heat when it reaches the outdoor condenser. Compressors come in various types, such as reciprocating, scroll, and rotary, each with unique benefits. For example, scroll compressors are reliable and have fewer moving parts, while rotary compressors operate quietly, making them ideal for residential use.

Condenser Coil

The condenser coil, located in the outdoor condenser, is where the magic of heat exchange happens. After the refrigerant absorbs heat indoors, it travels to the condenser coil to release that heat outside. This process involves three stages: desuperheating, condensing, and subcooling. By the end of this cycle, the refrigerant is ready to re-enter the system as a liquid. Regular maintenance, like cleaning the coils and inspecting for damage, ensures the condenser coil works efficiently and prevents costly repairs.

Expansion Valve

The expansion valve regulates the flow of refrigerant into the evaporator coil. It adjusts based on the temperature of the refrigerant leaving the evaporator, ensuring the system maintains optimal performance. This component is crucial for stabilizing the cooling process and preventing issues like frozen coils or inconsistent airflow. If your AC runs constantly or blows warm air, it might indicate a problem with the expansion valve.

Supporting Air Conditioner Components

Air Filter

The air filter is a small but mighty part of your AC system. It keeps your air conditioning components running smoothly by trapping dust and debris before they can damage sensitive parts. Without it, dirt could settle on the evaporator coil, causing inefficiency and even breakdowns. Plus, the air filter improves indoor air quality by removing allergens and pollutants. This is especially helpful if you or your family members have allergies or respiratory issues. To keep your AC working at its best, check and replace the air filter regularly. A clogged filter can restrict airflow, making your system work harder and increasing energy costs.

Refrigerant

Refrigerant is the lifeblood of your AC system. It flows through the air conditioning components, absorbing heat from your home and releasing it outside. This process keeps your indoor space cool and comfortable. The refrigerant alternates between liquid and vapor states, ensuring consistent cooling. However, refrigerants have environmental impacts. Older types like CFCs and HCFCs harm the ozone layer, while newer ones like HFCs contribute to global warming. Thankfully, eco-friendly options like HFOs are becoming more common. These advancements aim to reduce the environmental footprint of air conditioning systems.

Fan

The fan plays a key role in the cooling process. It pulls warm air from your home and pushes it over the evaporator coil, where the refrigerant absorbs the heat. Then, it circulates the cooled air back into your living space. If you set your fan to "Auto" mode, it only runs when needed, saving energy and reducing wear. However, fans can face issues like strange noises, motor failures, or power problems. Regular maintenance, like cleaning and checking for loose wires, can prevent these issues and keep your AC running efficiently.

Thermostat

Your thermostat is the control center of your AC system. It lets you set the desired temperature and ensures your home stays comfortable. Smart thermostats take this a step further. They allow you to adjust settings remotely, monitor humidity, and even receive maintenance alerts. These features can save you up to $250 annually on energy bills. By optimizing your AC's performance, a smart thermostat not only lowers costs but also extends the life of your system. If you're looking to upgrade, a smart thermostat is a great investment for convenience and efficiency.

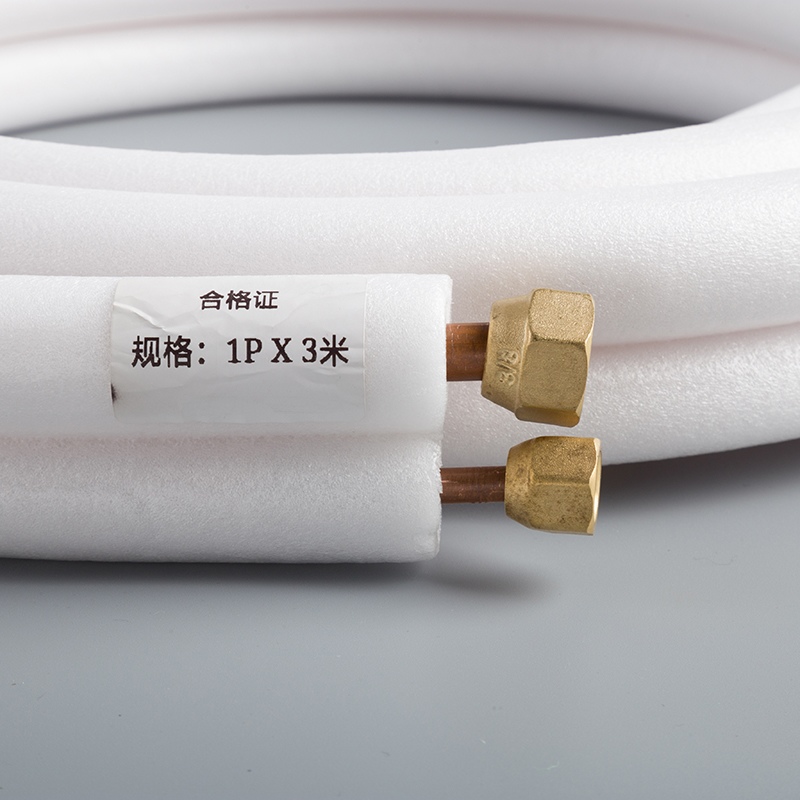

How Air Conditioner Components Work Together

The Cooling Cycle

Have you ever wondered how your AC keeps your home cool? It’s all about teamwork between the air conditioner components. Each part plays a specific role in the cooling cycle to ensure your air conditioning system works efficiently.

Here’s how it happens:

The process starts when your AC pulls warm air from your home.
The compressor compresses the refrigerant, turning it into a hot, high-pressure liquid.
This liquid flows to the condenser coils, where a fan helps release the heat outside.
The refrigerant then passes through the expansion valve, which rapidly cools it by reducing its pressure.
Finally, the cooled refrigerant enters the evaporator coils. These coils absorb heat from the indoor air, cooling it down.
A fan blows the chilled air back into your home, completing the cycle.

This seamless coordination between the components ensures your home stays comfortable, even on the hottest days.

Heat Transfer and the Role of Refrigerant

Refrigerant is the unsung hero of your air conditioning system. It’s the substance that makes heat transfer possible. As it cycles through the air conditioner components, it absorbs and releases heat to maintain a cool indoor environment.

Here’s how it works:

The refrigerant absorbs heat from the indoor air through the evaporator coil.
It then travels to the condenser coil, where it releases the heat outside.
During this process, the refrigerant alternates between liquid and vapor states, enabling efficient heat transfer.

This continuous cycle of heat absorption and release keeps your home cool and comfortable. Without refrigerant, your AC wouldn’t be able to function.

Common Issues with Air Conditioner Parts

Evaporator Coil Problems

Evaporator coils are prone to leaks, often caused by formicary corrosion. This happens when volatile organic compounds (VOCs) in your indoor air react with the coil’s material. VOCs come from everyday items like cleaning products, air fresheners, and even new furniture. To prevent leaks, reduce VOC levels in your home. This not only protects the coil but also improves indoor air quality. Regular inspections can help you catch leaks early, saving you from costly ac repair.

Compressor Malfunctions

The compressor is a vital part of your air conditioning system, but it’s not immune to problems. Watch out for these signs:

Weird sounds, like loud noises or slow operation.
Refrigerant leaks, which can result from wear and tear.
High electric bills, signaling increased energy consumption.
Weak airflow or warm air coming from your AC.
An overheating condenser unit.

If you notice these issues, you might need to replace the compressor or even the entire condenser. In some cases, upgrading to a new air conditioner or HVAC system could be the best solution.

Condenser Coil Issues

Dirty or damaged condenser coils can reduce your AC’s efficiency. High head pressure often results from dirt buildup, inadequate water flow, or trapped air in the system. To avoid this, clean the coils regularly and check for physical damage or leaks. If you hear unusual noises or smell something odd, it’s time to inspect the coils. Keeping them clean ensures efficient cooling and lowers energy costs.

Expansion Valve Troubles

Expansion valves can fail due to several reasons. Contaminants in the system may block the valve, while excessive pressure or temperature extremes can cause wear and tear. Signs of trouble include inconsistent cooling, strange noises, or ice forming on the valve or evaporator coil. A faulty valve can also increase energy consumption, leading to higher bills. Regular maintenance helps prevent these issues and keeps your air conditioning system running smoothly.

Failures in Supporting Components

Supporting components like motors, belts, and bearings can wear out over time. Improper installation or extreme weather conditions can also cause failures. To minimize these risks, ensure proper housing and ventilation for your AC. Regular maintenance of the ventilation system reduces contaminant buildup and prevents overheating. Keeping your unit calibrated helps maintain ideal operating temperatures, extending the lifespan of your air conditioner parts.

Understanding the main air conditioner parts, like the evaporator coil, compressor, condenser coil, and expansion valve, is key to keeping your home cool. Supporting components, such as air filters and thermostats, also play a big role in efficiency:

Changing air filters regularly ensures proper airflow and reduces energy use.
Smart thermostats let you adjust temperatures precisely, saving energy and lowering costs.

Routine maintenance of these parts offers long-term benefits. It can save up to 15% on cooling costs and prevent expensive repairs by catching small issues early. When your system runs efficiently, you’ll enjoy lower utility bills and a longer-lasting unit.

By knowing how these parts and components work together, you can keep your air conditioner running smoothly and your home comfortable year-round.

FAQ

How often should you replace your air filter?

You should replace your air filter every 1-3 months. If you have pets or allergies, check it monthly for better performance. 🐾

What’s the best way to clean the condenser coil?

Turn off the power, then gently spray the coil with water. Use a soft brush for stubborn dirt. Avoid harsh chemicals to prevent damage.

Why is your AC blowing warm air?

Warm air usually means low refrigerant, a dirty filter, or a faulty thermostat. Check these first before calling a professional.

Tip: Regular maintenance prevents most AC issues and keeps your system running efficiently.
