What Are Pre-Charged Line Sets and How Do They Work

If you want an easier way to install HVAC systems, a pre-charged line set for air conditioner units could help. These are copper pipes filled with refrigerant, specifically designed for air conditioners and HVAC systems. They eliminate the need for expert refrigerant charging, making them ideal for DIY mini-split projects. A pre-charged line set for air conditioner installations saves time and simplifies the process. Their ease of use and efficiency make them popular among homeowners.

Key Takeaways

• Precharged line sets make HVAC setups easier by removing the need to add refrigerant manually. They are great for DIY projects.

• These line sets already have refrigerant inside and use quick-connect parts. This makes connecting them simple and fast without needing special tools.

• Picking the right length and making sure they match your HVAC system is important for good performance and efficiency.

• Precharged line sets can help you save money on labor and lower the chance of refrigerant leaks, which is better for the environment.

• Always follow the maker's instructions when installing to keep the setup safe and the system working well.

What Are Pre-Charged Line Sets?

Definition and Components

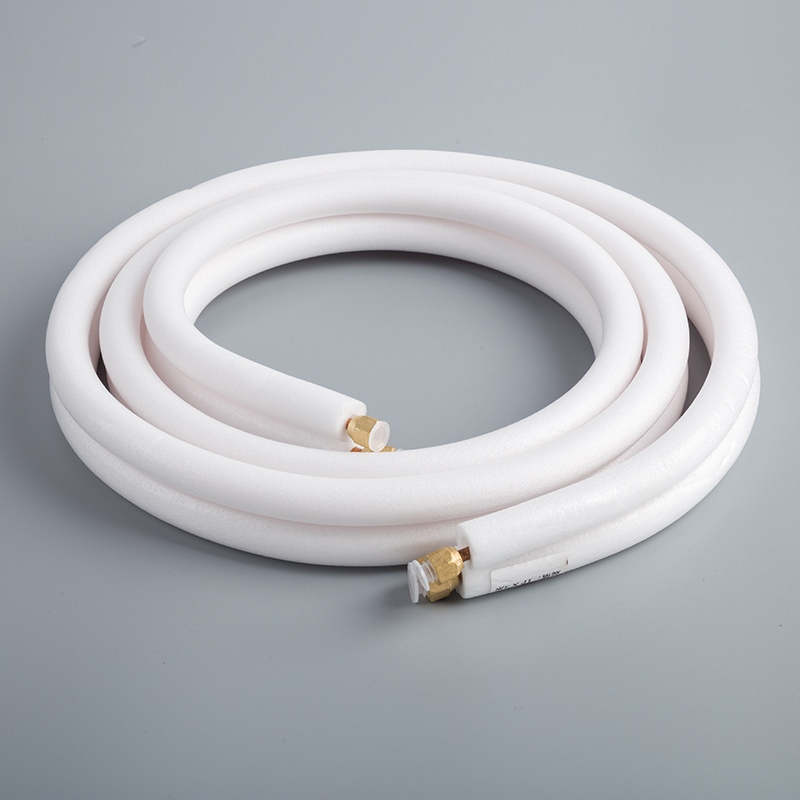

A precharged line set is a copper tube system filled with refrigerant. It connects the indoor and outdoor parts of an HVAC system. These tubes come sealed and pre-filled, so no manual refrigerant charging is needed. This makes them easy to use for professionals and DIY projects.

The main parts of a precharged line set include:

These parts work together to make the line set reliable for heating and cooling.

Purpose in HVAC Systems

Precharged line sets make HVAC installations easier. They link the indoor unit to the outdoor unit, letting refrigerant move smoothly. This helps your system heat and cool your home effectively.

One big benefit is that outdoor units can be installed after homes are delivered. This reduces the need for hiring HVAC experts, making it simpler for homeowners. The sealed design also skips evacuation steps, saving time and avoiding mistakes during setup.

Key Features

Precharged line sets have features that make them special:

• Accurate Refrigerant Charging: Each set comes with the right amount of refrigerant for best performance.

• Quick Connect Couplings: These make attaching units simple without needing special tools.

• Custom Lengths: Choose sizes from 3 to 150 feet to fit your needs.

• Durable Construction: Strong copper and insulation materials keep your system working longer.

• Advanced Quality Control: Leak tests and inspections ensure reliability and prevent refrigerant leaks.

These features make precharged line sets a great choice for easy HVAC installation with reliable results.

How Do Pre-Charged Line Sets Work?

Refrigerant Functionality

Precharged line sets help your HVAC system heat and cool. These copper tubes come with the right amount of refrigerant inside. The refrigerant moves between indoor and outdoor units, carrying heat. For cooling, it takes heat from inside and releases it outside. For heating, it pulls heat from outside and brings it inside.

The sealed tubes keep the refrigerant safe from leaks. This design skips the need for adding refrigerant on-site. It saves time and avoids mistakes. With precharged line sets, you get reliable heating and cooling without extra hassle.

Quick Connect Coupling Assembly

Quick-connect fittings are a key feature of precharged line sets. These fittings let you join indoor and outdoor units easily. You don’t need special tools or skills to use them. They create a tight connection, so refrigerant flows without leaks.

These fittings make installation simple. You don’t need to solder or braze like with regular lines. Just align the fittings and tighten them. This is perfect for DIY projects and saves money on hiring experts.

Installation Process Overview

Installing precharged line sets is easier than traditional methods. The tubes already have refrigerant, so no charging is needed. This saves time and lowers the chance of leaks, making it safer.

To install, connect the indoor and outdoor units using quick-connect fittings. Secure the tubes and make sure they’re insulated well. Then, test the system to check the connections and performance. This easy process makes precharged line sets great for small projects and DIY setups.

Tip: Always read the manufacturer’s guide before starting. Properly securing the tubes and fittings will keep your system running well for years.

Compatibility with HVAC Systems

Compatible Systems

Precharged line sets work with many HVAC systems. They are a good choice for homeowners. These include MRCOOL DIY mini-splits, multi-zone, and central systems. They also fit advanced heat pumps like HyperHeat and Universal Series. This makes them useful for both simple and complex setups.

A key feature is the use of R-410A refrigerant. It is eco-friendly and works efficiently. Quick-connect fittings make installation easy for beginners. You don’t need vacuum pumps or refrigerant charging. This saves money and makes the process simple.

DIY Mini-Split Examples

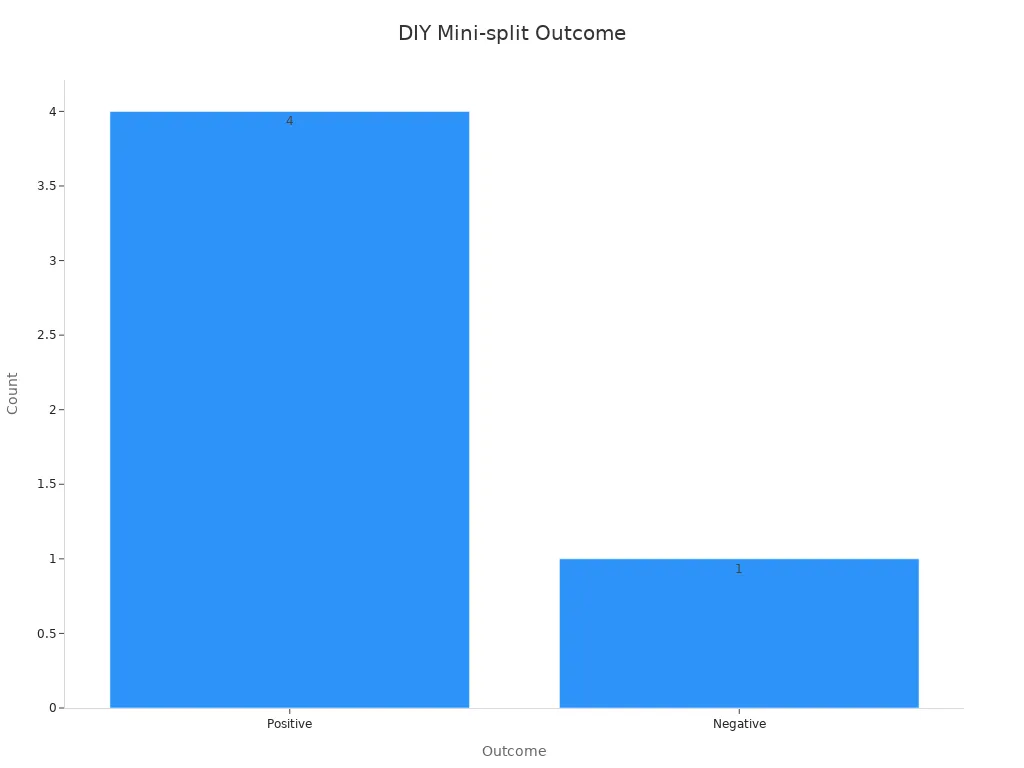

Precharged line sets are great for DIY mini-split projects. Many people install them without hiring professionals. This saves time and money. For example, one person installed five units with little help. Another found IdealAir’s precharged lines easy to use. These examples show how simple and effective they are for DIY setups.

But not all experiences are perfect. Some users had issues, like bad connections, needing expert help. This shows why following instructions is important.

Factors for Compatibility

To pick the right precharged line set, check a few things. First, make sure the refrigerant type matches your system. Most use R-410A, which fits modern systems. Next, check the length and size of the line set. It should match the distance between your indoor and outdoor units. Wrong sizes can hurt performance.

Also, see if your system works with quick-connect fittings. These make setup easier and prevent leaks. Lastly, read the manufacturer’s guide for your HVAC system. This ensures the line set will meet your heating and cooling needs.

Tip: Measure the distance between your indoor and outdoor units carefully before buying a precharged line set.

Benefits of Pre-Charged Line Sets

Simplified Installation

Precharged line sets make installing HVAC systems much simpler. You don’t need to manually handle refrigerant or charge the lines. The tubes already have the right amount of refrigerant inside. This means you can skip hard steps and save time. You also don’t need special tools or expert skills to install them.

Quick-connect fittings make the process even easier. These fittings let you join indoor and outdoor units without soldering. Just line them up and tighten them securely. This makes installation faster and easier for beginners. If you’re doing a DIY mini-split project, precharged line sets are very helpful.

Tip: Follow the manufacturer’s guide to avoid mistakes during installation.

Cost Savings

Precharged line sets help you save money in many ways. You don’t need to pay a professional to charge refrigerant or install the system. This lowers labor costs. The quick-connect fittings also mean you don’t need expensive tools like vacuum pumps.

These line sets reduce mistakes that can lead to costly repairs. Errors with regular refrigerant lines can be expensive to fix. Precharged line sets simplify the process and prevent extra expenses. Over time, their strong copper and insulation materials save money by lasting longer.

Reduced Refrigerant Leaks

Precharged line sets are made to stop refrigerant leaks. Leaks are common with regular systems but less likely here. The sealed tubes and quick-connect fittings create tight connections. This design helps prevent leaks during setup and use.

Many people install precharged line sets without leaks. Securing the fittings and checking connections makes them even more reliable. Fewer leaks mean better heating and cooling efficiency. It also protects the environment by keeping harmful refrigerants from escaping.

Note: Check your system’s connections often to keep it working well.

Time Efficiency

Pre-charged line sets help save a lot of time. Regular HVAC systems need many steps like vacuuming and testing for leaks. These steps take time and need special tools or experts. Pre-charged line sets skip all these extra steps.

Quick-connect fittings make the process even faster. They let you connect indoor and outdoor units easily. No soldering or brazing is needed. Just align the fittings, tighten them, and you're done. This simple method is great for DIY projects or quick setups.

The refrigerant lines are already filled with the right amount. You don’t need to measure or add refrigerant yourself. This avoids mistakes like overcharging or undercharging. It also saves time and prevents problems later.

For busy homeowners or contractors, this is a big advantage. You can finish the job much faster than with regular systems. This means your HVAC system will work sooner, giving you comfort without delays.

Tip: Check all connections and insulation carefully to keep your system working well.

Choosing the Right Pre-Charged Line Set

Length and Size Considerations

Picking the right length and size is very important. Most mini-split systems come with 25 feet of pre-charged line set. If you need a longer line, calculate how much extra refrigerant is needed. This keeps the system running well and protects the compressor.

Measure the distance between the indoor and outdoor units carefully. Avoid using a line set that is too long, as it can lower efficiency. If there’s extra line, coil it neatly behind the outdoor unit. This keeps it safe and looking tidy.

Matching to HVAC Systems

Make sure the refrigerant in the line set matches your HVAC system. Most modern systems use R-410A refrigerant, which is efficient and eco-friendly. Check your system’s manual to confirm the refrigerant type and line set needs.

Quick-connect fittings are also important. They make installation easier and help prevent leaks. Ensure your HVAC system supports these fittings for a smooth setup. Always read the user manual to confirm compatibility with your system.

Installation Tips

Installing a pre-charged line set correctly is very important. Start by drilling a 3.5-inch hole in the wall for the line set. This size fits well and keeps things neat. Before connecting, clean the threads and surfaces with a cloth. Add refrigerant oil to the threads, o-rings, and diaphragms for a tight seal.

When attaching the fittings, start threading by hand to avoid damage. Use two wrenches—one to hold the tube and another to tighten the nut. This ensures a secure connection without breaking anything. Lastly, insulate the line set to protect it from weather damage.

Tip: Follow the manufacturer’s instructions to avoid mistakes and keep your system working well.

Pre-charged line sets simplify HVAC installation and save effort. They remove the need for expert refrigerant charging, ideal for DIY mini-splits. These systems save time, cut costs, and prevent refrigerant leaks. Their strong design makes them last a long time. Thinking of upgrading your HVAC? Pre-charged line sets offer an easy solution. Got questions or advice? Drop them in the comments!

FAQ

1. Can pre-charged line sets be reused for another HVAC system?

No, you can’t reuse pre-charged line sets. Once used, the refrigerant inside is released. For a new system, you’ll need a new line set with the right refrigerant amount.

Tip: Always buy a new pre-charged line set for every installation to ensure it works properly.

2. Do pre-charged line sets fit all HVAC systems?

Pre-charged line sets work with most modern systems like mini-splits and heat pumps. But they might not fit older systems or ones without quick-connect fittings. Check your system’s manual to be sure.

Note: Make sure your system uses R-410A refrigerant for the best fit.

3. How can you stop leaks during installation?

To avoid leaks, clean the fittings and threads before connecting them. Apply refrigerant oil to the o-rings and tighten the quick-connect fittings well. Test the system after setup to check for leaks.

Tip: Follow the manufacturer’s guide closely to avoid leaks.

4. What tools are needed to install pre-charged line sets?

You’ll need simple tools like a drill, wrenches, and a level. Pre-charged line sets don’t need special tools like vacuum pumps, making them great for DIY projects.

Emoji Tip: 🛠️ Keep your tools ready and organized for easy installation.

5. Are pre-charged line sets good for the environment?

Yes, pre-charged line sets use R-410A refrigerant, which is better for the environment than older types. Their sealed design also helps prevent leaks, reducing harm to nature.

Reminder: Install them correctly to keep the refrigerant sealed and eco-friendly.
