What Are Pre-Charged Line Sets and How Do They Work

Baoyuan

·April 25, 2025

·14 min read

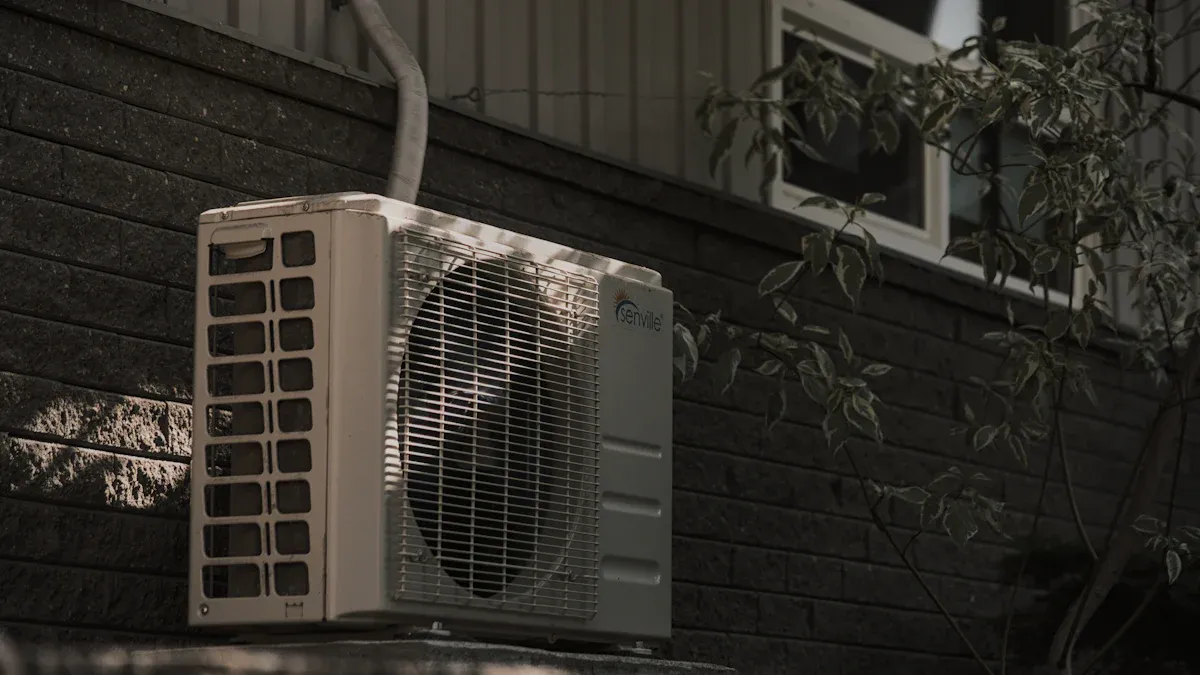

What Are Pre-Charged Line Sets and How Do They Work — Image Source: pexels

Pre-charged line sets for air conditioners are specialized tubes filled with refrigerant, designed specifically for HVAC systems like mini split air conditioners. These pre-charged line sets for air conditioners simplify and speed up the installation process, as technicians don’t need to manually add refrigerant, reducing the risk of errors. This ensures the system operates efficiently right from the start. Additionally, pre-charged line sets for air conditioners help prevent refrigerant leaks, enhancing both system performance and eco-friendliness. Homeowners and professionals alike find these line sets invaluable for air conditioner installations.

Pre-charged systems make refrigerant handling simpler during installation.
They prevent issues such as overcharging or undercharging refrigerant.
Properly connected pre-charged line sets for air conditioners ensure optimal system functionality.

HVAC systems greatly benefit from this innovation, as it streamlines installation while maintaining high performance.

Key Takeaways

Pre-charged line sets make installing air conditioners easier.
They come with refrigerant, so you don’t need to add it.
These line sets help stop leaks and keep the system working well.
They are great for DIY projects and simple for homeowners to use.
Pre-charged line sets save time and money during installation.
Check if they work with your HVAC system before buying them.

What Is a Pre-Charged Line Set for Air Conditioner?

Definition and Purpose

A pre-charged line set is a tube filled with refrigerant. It connects the indoor and outdoor parts of HVAC systems. These tubes already have the right amount of refrigerant inside. This means you don’t need to add refrigerant during installation. It makes setup easier and ensures the system works well from the start.

These pre-charged line sets are great for ductless systems like mini splits. They skip hard steps like vacuuming lines or checking refrigerant levels. Both professionals and homeowners can use them for DIY projects. Using these line sets lowers the chance of leaks and keeps your air conditioner running smoothly.

Key Features of Precharged Line Sets

Pre-charged line sets have features that make them useful in HVAC systems. Here are some important ones:

Pre-filled with Refrigerant: They come with the exact refrigerant amount needed for proper function.
Quick-Connect Fittings: Easy-to-use fittings let you connect lines without special tools.
Durable Construction: Strong materials and insulation help prevent energy loss.
Compatibility with Ductless Systems: Perfect for mini split air conditioners and similar setups.

For example, MRCOOL DIY systems use pre-charged line sets for easy installation. These systems are quieter than window AC units. On low fan settings, they are almost silent, creating a peaceful indoor space.

Systems That Use Pre-Charged Line Sets

Pre-charged line sets are mostly used in ductless air conditioners like mini splits. These systems save energy and are simple to install. Unlike central HVAC systems, they don’t need ducts, making them popular for modern homes.

Here are examples of systems that use pre-charged line sets:

Mini Split Air Conditioners: These systems use line sets to connect indoor and outdoor units.
Ductless Air Conditioners: Line sets make installation easier, even for DIY users.
MRCOOL DIY Systems: These systems show how line sets improve installation and performance.

One MRCOOL user said their contractor doubted the line sets at first. After learning more, the contractor saw that vacuuming wasn’t needed. This shows how pre-charged line sets are becoming more common in HVAC setups. It also highlights the need for professionals to understand this innovation better.

How Do Precharged Line Sets Work?

Why Pre-Charging Matters

Pre-charging is very important for installing air conditioners. It means the refrigerant in the line set is already measured and sealed. This removes the need to add refrigerant during setup. It also lowers the chance of mistakes like adding too much or too little refrigerant. Such errors can damage the compressor and hurt system performance. Precharged line sets make installation easier and keep the refrigerant levels correct for the system to work well.

Pre-charging is not just about making things easier. It helps the environment by reducing refrigerant leaks, which can harm the planet. It also ensures your HVAC system works efficiently from the start. This saves energy and lowers costs. Pre-charging is helpful for both professionals and DIY users. It makes setup simple and ensures the system runs reliably.

How Refrigerant Moves in Pre-Charged Mini Split Systems

In pre-charged mini split systems, refrigerant moves between the indoor and outdoor units. The outdoor unit’s compressor pressurizes the refrigerant and sends it to the indoor unit. Inside, the refrigerant absorbs heat, cooling the room. Then, it goes back to the outdoor unit to release the heat, completing the cycle.

Precharged line sets are made to keep this flow working properly. The sealed tubes stop contamination and keep the refrigerant at the right level. This design removes the need for vacuuming or adding refrigerant during setup. Using precharged line sets ensures smooth refrigerant flow and protects the compressor from damage caused by incorrect charging.

Fit with Mini Split Air Conditioners

Precharged line sets are made for mini split air conditioners and ductless systems. These systems need refrigerant lines to connect indoor and outdoor units. Precharged line sets are perfect because they have quick-connect fittings and pre-measured refrigerant. This makes installation much easier.

When picking precharged line sets, make sure they fit your system. Check the line set length and the refrigerant type your mini split uses. Proper installation is key to keeping your HVAC system efficient and lasting longer. Precharged line sets are a great choice for homeowners and professionals. They are reliable and easy to use, making them popular for modern air conditioning systems.

Benefits of Pre-Charged Line Sets

Faster Installation Process

Precharged line sets make installing HVAC systems quicker and simpler. You don’t need to add refrigerant yourself, saving time and effort. These line sets skip steps like vacuuming and leak checks during setup. This reduces the chance of dirt or air getting into the system. It also ensures your air conditioner works well right away.

Using precharged line sets speeds up installation and avoids mistakes. Connecting refrigerant lines takes less time and fewer tools. Traditional methods need extra steps and special equipment, but precharged line sets make it easier. If you want fast installation, these line sets are great for mini split systems.

Cost Savings for Homeowners

Precharged line sets save money in several ways. First, they cut labor costs because installation is faster and easier. You don’t need experts for tricky refrigerant tasks. Second, they prevent costly mistakes like adding too much or too little refrigerant. These errors can break the compressor and lead to expensive repairs.

These line sets also help your air conditioner run efficiently. The right refrigerant levels keep the compressor working smoothly, using less energy. Over time, this lowers your electricity bills. For ductless systems, precharged line sets are a smart choice that saves money and works well.

Reduced Risk of Refrigerant Leaks

Refrigerant leaks can damage your HVAC system and harm the environment. Precharged line sets stop leaks by sealing refrigerant inside strong, insulated tubes. This keeps the refrigerant at the right level and protects the compressor.

Leaks often happen when refrigerant is added manually during installation. Precharged line sets avoid this problem by coming with sealed, pre-measured refrigerant. This design protects your air conditioner and reduces harm to the planet. For mini split systems, precharged line sets are dependable and eco-friendly, keeping your home cool while helping the environment.

Perfect for DIY Projects

Precharged line sets make installing HVAC systems easy for beginners. They simplify the process, so you don’t need experience to use them. With these line sets, you skip hard steps like vacuuming or measuring refrigerant. This makes them great for ductless systems like mini split air conditioners.

Many people have shared positive experiences with DIY units like MR COOL systems. One person said installing a MR COOL 12000 DIY unit was simpler than other brands. Another person’s friend, an HVAC expert, liked how easy the setup was. These stories show precharged line sets are both professional and beginner-friendly.

Quick-connect fittings on precharged line sets make installation simple. You don’t need special tools to connect indoor and outdoor units. These fittings keep refrigerant sealed and at the right level. This protects your system from leaks or damage. For ductless systems, this feature is very important.

Precharged line sets save time and money. You won’t need to pay for professional help, and installation is faster. Whether you’re upgrading your cooling system or adding a new ductless unit, these line sets make the job easier. They are efficient, simple, and reliable—perfect for DIY fans like you.

Tip: Make sure the precharged line set matches your HVAC system before starting. This helps avoid problems and ensures a smooth installation.

Installing Pre-Charged Line Sets

Tools and Materials Needed

Get all tools and materials before starting the installation. Being prepared makes the process easier and faster. Here’s what you’ll need:

Flare wrenches: Tighten refrigerant line connections securely.
Torque wrench: Ensure connections are tightened correctly.
Refrigerant oil: Lubricate connections to stop leaks.
Vacuum pump or similar tool: Remove air and moisture from the system.
Installation manual: Follow the instructions for your DIY unit.

Make sure the pre-charged line set matches your air handler and compressor. This avoids problems during installation.

Step-by-Step Installation Instructions

Follow these steps to install mini split systems easily:

Check that the DIY unit is new and has the right charge.
Pick a pre-charged line set with the correct charge length.
Gather tools like flare wrenches, torque wrench, and refrigerant oil.
Use a vacuum pump to clear air and moisture from the system.
Test for leaks by holding the vacuum for 24 hours.
Connect the copper refrigerant line between the air handler and compressor. Ensure proper drainage and wiring.
7. Plan installation steps carefully, considering access points for both units.

This guide makes installation simple for professionals and DIY users.

Tips for a Successful Installation

Follow these tips to ensure the installation goes smoothly:

Read the manual carefully: Each DIY unit has specific instructions.
Check all connections: Make sure they are tight to avoid leaks.
Don’t over-tighten: Use a torque wrench to tighten properly. Over-tightening can cause damage.
Test the system: Run it after installation to check for issues.
Handle parts gently: Protect the air handler and compressor from damage.

These tips help your HVAC system work well and last longer.

Common Mistakes to Avoid

Setting up pre-charged line sets is usually easy, but mistakes can cause trouble. Avoid these errors to keep your system working well and lasting longer.

Skipping the Manual
Always read the manual first. It has important steps for your DIY unit. If you skip it, you might install things wrong and harm the air handler or compressor. Take time to learn the steps in the manual.
Improper Handling of the Air Handler
Be careful with the air handler. Dropping it can break parts inside. Make sure it's mounted safely and in the right spot to avoid problems.
Incorrect Connection of Refrigerant Lines
Connecting refrigerant lines wrong is common. Use tools like flare wrenches to tighten them well. Loose lines can leak, and too tight can break them. Follow the manual for correct setup.
Neglecting to Test for Leaks
Checking for leaks is very important. Many skip this, causing refrigerant loss and poor system work. Use a vacuum pump to test for leaks before starting the system. Keep the vacuum for 24 hours to ensure no leaks.
Choosing the Wrong Line Set Length
Picking the wrong line set length can cause issues. Measure the space between the air handler and compressor carefully. A line set that's too short or long can mess up refrigerant flow and system work.
Ignoring Drainage and Wiring
Bad drainage and wiring can cause problems later. Make sure the drain line is set right to stop water damage. Check wiring connections to avoid electrical issues.

Tip: Plan your steps carefully. This helps avoid mistakes and makes setup smooth.

By avoiding these mistakes, you can set up your DIY unit well. Proper setup keeps your air handler safe and your system running smoothly.

Considerations and Potential Issues

Making Sure It Matches Your System

Before using pre-charged line sets, check if they fit your HVAC system. Look at your air handler and compressor details to confirm the refrigerant type and line set length are correct. Wrong line sets can mess up refrigerant flow and lower efficiency.

Read the manual that comes with your air conditioner. It has important compatibility information. Skipping this step might harm your air handler or compressor. Measure the space between indoor and outdoor units carefully. This ensures the line set fits without being too tight or too loose.

Tip: Always check the refrigerant type and line set size before buying. This prevents problems and helps your system work properly.

Handling and Storing Carefully

Be gentle when handling pre-charged line sets. Rough handling can cause leaks or damage, which affects how well your system works. Don’t bend or twist the line sets when moving them. This keeps them safe from cracks or breaks.

Store the line sets in a cool, dry place until you’re ready to install them. Moisture or extreme heat can weaken the materials. Keep the air handler and compressor parts safe too. Dropping them can cause hidden damage inside.

Follow the manual for handling tips. It shows how to protect the refrigerant line and other parts. Careful handling keeps your HVAC system working well.

Tips to Keep It Working Longer

Taking care of your HVAC system helps it last longer and work better. Check the air handler and refrigerant line often for leaks or damage. Fix problems quickly to avoid bigger issues.

Clean the air handler filters every few months. Dust can block airflow and make cooling less effective. Listen to the compressor for strange sounds or vibrations. These could mean something is wrong and needs fixing.

Use the manual for maintenance advice. It tells you how to keep your system in good shape. Regular care makes your system last longer and run efficiently.

Note: Get a professional to inspect your system once a year. This finds hidden problems early and avoids expensive repairs.

Pre-charged line sets make HVAC setups easier. They have tubes with refrigerant that link indoor and outdoor units. These line sets remove the need to add refrigerant yourself. This makes them perfect for mini split air conditioners. Installations are quicker, with fewer leaks and better system performance.

To keep your system working well, install it properly and maintain it often. Look at the air handler and refrigerant lines for problems. Clean the air handler filters to keep airflow strong. These steps help you get the most from pre-charged line sets and keep your HVAC system in good shape.

FAQ

What is the purpose of pre-charged line sets?

Pre-charged line sets make HVAC setup easier. They already have refrigerant inside, so you don’t need to add it yourself. This reduces mistakes and helps the system work better. Both professionals and DIY users find them helpful.

Can you install pre-charged line sets without professional help?

Yes, you can install pre-charged line sets on your own. They have easy-to-use fittings and come with the right amount of refrigerant. Following the manual and tips will help your system run smoothly.

How do pre-charged line sets prevent refrigerant leaks?

Pre-charged line sets are sealed with the correct refrigerant amount. Their strong materials and secure fittings stop leaks during installation. This keeps the refrigerant flowing properly.

Are pre-charged line sets compatible with all HVAC systems?

No, pre-charged line sets don’t work with every HVAC system. They are made for ductless systems like mini splits. Always check your system’s details to make sure they fit.

Why are pre-charged line sets considered eco-friendly?

Pre-charged line sets help the environment by stopping refrigerant leaks. Their sealed design keeps refrigerant levels correct and avoids waste. This makes them a greener choice for air conditioner setups.
