What Are the Different Types of Copper Tubing Used For

Baoyuan

·January 2, 2025

·23 min read

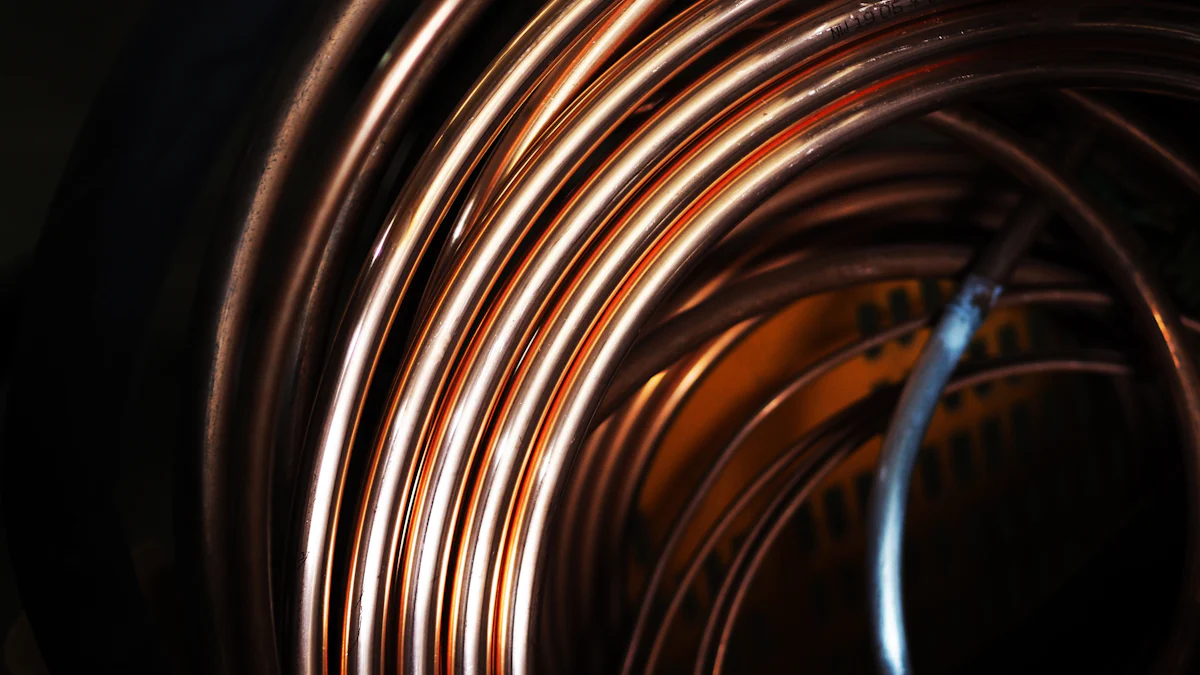

What Are the Different Types of Copper Tubing Used For — Image Source: unsplash

Copper tubing plays a vital role in modern construction and mechanical systems. Its durability, corrosion resistance, and excellent conductivity make it a top choice for various applications. You’ll find copper tubing widely used in plumbing, HVAC systems, and waste management. For plumbing purposes, it ensures reliable water flow and long-lasting performance. The different types of copper tubing, such as Type K, Type L, Type M, and DWV, cater to specific needs. Each type offers unique characteristics, ensuring suitability for diverse tasks, from high-pressure water mains to efficient waste disposal systems.

Key Takeaways

Understand the four main types of copper tubing: Type K, Type L, Type M, and DWV, each designed for specific applications based on wall thickness and durability.
Type K copper tubing is the most durable and suitable for high-pressure systems, making it ideal for underground water mains and commercial plumbing.
Type L copper tubing offers a balance of strength and cost, making it versatile for both residential and commercial plumbing applications.
Type M copper tubing is lightweight and cost-effective, best suited for low-pressure residential plumbing systems.
Always check local building codes before selecting copper pipes to ensure compliance and avoid costly mistakes.
Consider the long-term costs and durability of the pipes; investing in higher-quality options like Type K or L can save money on maintenance and replacements over time.
Match the type of copper pipe to the specific application, taking into account factors like pressure requirements, environmental conditions, and the medium being transported.

Types of Copper Tubing and Their Applications

Copper tubing comes in various types, each designed for specific uses. Understanding the characteristics and applications of these types helps you make informed decisions for your projects. Below, we explore the most common types of copper pipes: Type K, Type L, and Type M.

Type K Copper Tubing

Characteristics of Type K Copper Tubing

Type K copper pipe stands out as the most durable option due to its thick walls. Its robust construction makes it ideal for high-pressure environments. This type is available in both rigid and flexible forms, offering versatility for different installation needs. The thickness of Type K ensures excellent resistance to wear and tear, even in demanding conditions.

Applications of Type K Copper Tubing

You’ll find Type K copper pipe commonly used in underground water mains, where durability is essential. It’s also a popular choice for commercial plumbing systems and HVAC installations. Additionally, Type K works well in fire sprinkler systems, providing reliable performance under high pressure. Its strength and longevity make it a preferred option for critical infrastructure.

Type L Copper Tubing

Characteristics of Type L Copper Tubing

Type L copper pipe features walls that are thinner than Type K but thicker than Type M. This balance of strength and flexibility makes it suitable for a wide range of applications. Type L pipes are available in both rigid and flexible forms, allowing you to adapt them to various installation scenarios. Their moderate thickness ensures durability while keeping costs reasonable.

Applications of Type L Copper Tubing

Type L pipes are widely used in interior plumbing systems, ensuring reliable water distribution throughout homes and buildings. They are also suitable for fire protection systems and some HVAC applications. The versatility of Type L makes it a go-to choice for both residential and commercial projects. Whether you need a pipe for water supply or heating systems, Type L offers dependable performance.

Type M Copper Tubing

Characteristics of Type M Copper Tubing

Type M copper pipe has the thinnest walls among the three main types. This design makes it lightweight and cost-effective, though less durable than Types K and L. Type M is typically used in low-pressure applications where heavy-duty strength isn’t required. Its affordability makes it an attractive option for budget-conscious projects.

Applications of Type M Copper Tubing

You’ll often see Type M pipes in residential plumbing systems, particularly for domestic water service. They are also used in vacuum systems and other low-pressure setups. While Type M may not be as strong as other types, it provides a practical solution for homeowners looking to save on costs without compromising functionality.

DWV Copper Tubing

Characteristics of DWV Copper Tubing

Copper DWV pipe stands for "Drain, Waste, and Vent," which highlights its primary purpose in plumbing systems. This type of copper tubing features the thinnest walls among all copper pipe types, making it lightweight and cost-effective. However, its thin walls limit its ability to handle high-pressure applications. For instance, a 1 ½-inch copper DWV pipe has a wall thickness of only 0.42 inches and a pressure rating of 10 to 15 psi.

Unlike other copper pipes, copper DWV pipe is designed exclusively for gravity-based systems, such as drainage and venting. It cannot withstand the high-pressure flow required in water supply lines. This pipe is available only in rigid form, which further restricts its flexibility during installation. To distinguish it from other types, copper DWV pipe often features yellow markings.

Applications of DWV Copper Tubing

You’ll find copper DWV pipe primarily used in drain, waste, and vent systems. These pipes rely on gravity to remove waterborne waste from buildings. They are ideal for above-ground installations, as their thin walls cannot endure the stress of underground or high-pressure environments.

In older homes, copper DWV pipe was a common choice for plumbing drains and vents. However, modern construction has largely replaced it with more affordable materials like PVC or ABS plastic. Despite this, copper DWV pipe remains a viable option in specific scenarios, such as exposed locations or vintage homes where plastic alternatives are unsuitable. Additionally, its larger diameter and superior hydraulic-flow characteristics make it effective for certain drainage systems and fire-protection risers in multistory buildings.

While copper DWV pipe is no longer the standard for new construction, it continues to serve as a reliable solution for specialized applications. Its durability and resistance to corrosion ensure long-lasting performance in the right conditions.

Comparison of Types of Copper Pipes

When choosing copper pipes for your project, understanding their differences is essential. Each type offers unique features that affect its performance, cost, and suitability for specific applications. Below, we compare the key aspects of wall thickness, durability, cost, and usage in residential and commercial settings.

Wall Thickness and Durability

The wall thickness of copper pipes directly impacts their durability and ability to handle pressure. Type K pipes have the thickest walls, making them the most durable option. Their strength allows them to withstand external forces and high-pressure environments, such as underground water mains or commercial plumbing systems. Type L pipes come next with moderately thick walls, offering a balance of durability and flexibility. These pipes perform well in both residential and commercial settings, ensuring long-lasting reliability. On the other hand, type M pipes have the thinnest walls, which makes them less durable but easier to work with. They are best suited for low-pressure applications, such as residential plumbing systems.

Pro Tip: If you need pipes for high-pressure or outdoor installations, opt for Type K or Type L. For indoor, low-pressure systems, Type M is a practical choice.

Cost and Affordability

Cost is a significant factor when selecting copper pipes. Type M pipes are the most affordable option due to their thinner walls and lighter weight. This makes them a popular choice for budget-conscious homeowners tackling residential plumbing projects. Type L pipes are slightly more expensive but offer greater durability and versatility, making them a worthwhile investment for long-term use. Type K pipes, with their thick walls and superior strength, are the most expensive. Their high cost reflects their ability to handle demanding applications, such as underground installations and commercial systems.

If you’re working on a tight budget, type M pipes can save you money while still meeting basic plumbing needs. However, for projects requiring durability and longevity, spending more on Type L or Type K may prove cost-effective in the long run.

Residential vs. Commercial Suitability

The suitability of copper pipes depends on the type of project—residential or commercial. Type M pipes are ideal for residential plumbing due to their affordability and ease of installation. They work well for indoor water distribution and other low-pressure systems. Type L pipes are versatile, making them suitable for both residential and commercial applications. They can handle moderate pressure and are often used in water supply lines, HVAC systems, and fire protection setups. Type K pipes, with their unmatched durability, are primarily used in commercial settings and underground installations. Their strength makes them the go-to choice for high-pressure systems and critical infrastructure.

For residential projects, type M pipes offer a cost-effective solution. For mixed-use or commercial projects, type L pipes provide the best balance of performance and affordability. When dealing with heavy-duty or underground systems, type K pipes deliver unmatched reliability.

How to Choose the Right Copper Pipe

Selecting the right copper pipe for your project requires careful consideration of several factors. Each decision impacts the performance, safety, and longevity of your plumbing system. By following these steps, you can ensure that your choice aligns with your needs and complies with local regulations.

Assess Local Building Codes

Before purchasing any copper pipe, you must check your local building codes. These regulations dictate which types of copper pipes are permissible for specific applications. For example, some areas prohibit the use of Type M copper pipes in residential or commercial plumbing due to their thinner walls and lower durability. Consulting with your local building authority ensures that your choice adheres to legal requirements and avoids costly mistakes.

Tip: Always confirm whether Type M pipes are allowed in your region, especially for interior water supply systems or domestic water systems. Some jurisdictions may also restrict the use of copper pipes for natural gas distribution.

Ignoring local codes can lead to non-compliance, resulting in fines or the need to replace improperly installed pipes. To avoid these issues, take the time to research and consult with professionals before making a decision.

Consider Durability and Longevity

Durability plays a crucial role in determining the right copper pipe for your project. The thickness of the pipe walls directly affects its ability to withstand pressure and resist wear over time. Type K pipes, with their thick walls, offer unmatched durability and are ideal for underground installations or high-pressure environments. Type L pipes provide a balance of strength and flexibility, making them suitable for water supply lines in both residential and commercial settings. Type M pipes, while more affordable, are best suited for low-pressure applications where heavy-duty performance is not required.

When choosing a pipe, think about the long-term demands of your system. For example, if you’re working on a project involving domestic water systems, investing in a more durable option like Type L may save you from future repairs or replacements.

Pro Tip: If your project involves outdoor installations or high-pressure systems, prioritize durability by selecting Type K or Type L pipes.

Evaluate Cost and Budget

Budget constraints often influence the type of copper pipe you choose. Type M pipes are the most cost-effective option, making them a popular choice for homeowners working on residential plumbing projects. However, their thinner walls may not provide the durability needed for long-term use in demanding applications. Type L pipes, while slightly more expensive, offer greater versatility and reliability, making them a worthwhile investment for most water supply lines. Type K pipes, with their superior strength, come at the highest cost but deliver exceptional performance in critical infrastructure projects.

To make an informed decision, weigh the initial cost against the potential long-term expenses. Spending more upfront on a durable pipe can reduce maintenance and replacement costs over time.

Reminder: While affordability is important, never compromise on quality or compliance with local codes. A poorly chosen pipe can lead to costly repairs and safety hazards.

Match the Pipe to the Application

Choosing the right copper pipe for your project requires aligning its characteristics with the specific application. Each type of copper pipe—Type K, Type L, Type M, and DWV—offers unique features that make it suitable for certain tasks. By understanding these distinctions, you can ensure optimal performance and longevity for your system.

1. Consider the Medium Being Transported

The type of material flowing through the pipe plays a significant role in your selection. For high-pressure water systems, Type K copper pipe is the best choice due to its thick walls and durability. If you’re working on standard water distribution systems, Type L copper pipe provides a reliable balance of strength and cost. For low-pressure applications, such as residential plumbing, Type M copper pipe offers an affordable and practical solution. In waste management systems, DWV copper pipe excels at handling gravity-based drainage and venting.

Tip: Always match the pipe material to the medium to prevent corrosion or chemical reactions that could compromise the system.

2. Evaluate Environmental Conditions

The environment where the pipe will be installed also influences your decision. Underground installations or outdoor projects demand pipes with greater durability. Type K copper pipe, with its thick walls, resists external forces and environmental wear, making it ideal for these scenarios. For indoor plumbing, Type L copper pipe works well, offering sufficient strength without unnecessary expense. Avoid using Type M copper pipe in areas exposed to harsh conditions, as its thinner walls may not withstand prolonged stress.

3. Align with System Pressure Requirements

System pressure is another critical factor. High-pressure systems, such as commercial plumbing or fire sprinkler setups, require the robust construction of Type K copper pipe. Moderate-pressure systems, like residential water supply lines, perform well with Type L copper pipe. For low-pressure systems, such as vacuum lines or domestic water service, Type M copper pipe provides a cost-effective option. DWV copper pipe, designed for non-pressurized systems, is unsuitable for any application involving significant pressure.

4. Factor in Longevity and Maintenance

Durability directly impacts the lifespan of your plumbing system. Type L copper pipe often outlasts Type M copper pipe due to its thicker walls, making it a better choice for long-term use. While Type K copper pipe offers unmatched durability, its higher cost may not always be necessary for residential projects. For waste systems, DWV copper pipe provides reliable performance when used in the right conditions, such as above-ground installations.

Pro Tip: Investing in a more durable pipe upfront can reduce maintenance costs and extend the life of your system.

5. Match the Pipe to the Building Type

The type of building—residential or commercial—also determines the appropriate copper pipe. For residential plumbing, Type M copper pipe is a budget-friendly option for low-pressure systems. In mixed-use or commercial buildings, Type L copper pipe offers the versatility needed for water supply and HVAC systems. For critical infrastructure, such as underground water mains, Type K copper pipe delivers the strength required to handle demanding conditions.

By carefully matching the copper pipe to the application, you can ensure efficiency, safety, and cost-effectiveness in your project. This approach not only prevents potential issues but also maximizes the lifespan of your plumbing system.

Benefits of Using Copper Pipes

Durability and Corrosion Resistance

Copper pipes stand out for their exceptional durability and resistance to corrosion. These pipes can last for decades, with a typical lifespan ranging from 50 to 80 years under ideal conditions. Their thick walls and robust construction allow them to withstand wear and tear, even in demanding environments. Unlike other materials, copper does not rust or degrade easily, ensuring a reliable water supply over time. This resistance to corrosion also means fewer maintenance requirements, saving you time and money in the long run.

Did You Know? Copper pipes are non-toxic and do not release harmful chemicals into the water, making them a safe choice for potable water systems.

The longevity of copper pipes makes them a cost-effective investment. While the initial cost may be higher than alternatives, their extended service life and minimal upkeep make them a practical choice for both residential and commercial projects.

Versatility Across Applications

Copper pipes offer unmatched versatility, making them suitable for a wide range of applications. Their ability to handle both high-pressure and low-pressure systems ensures they meet the needs of various plumbing setups. Whether you’re working on water distribution, HVAC systems, or waste management, copper pipes deliver consistent performance.

These pipes are available in both rigid and flexible forms, allowing you to adapt them to different installation scenarios. For underground water mains, rigid copper pipes provide the strength needed to endure external forces. Flexible copper pipes, on the other hand, are ideal for tight spaces or areas requiring intricate bends.

Pro Tip: Use Type K copper pipes for high-pressure systems and underground installations. For interior plumbing, Type L pipes strike the perfect balance between durability and cost.

Copper’s versatility extends beyond plumbing. Its excellent thermal conductivity makes it a preferred material for heating systems, while its corrosion resistance ensures long-lasting performance in drainage and venting systems.

Environmental Sustainability and Recyclability

Copper pipes contribute to environmental sustainability due to their recyclability. Unlike plastic alternatives, copper is a natural material that can be recycled indefinitely without losing its quality. This reduces waste and minimizes the environmental impact of construction projects.

Fact: Recycling copper requires significantly less energy than producing new copper, making it an eco-friendly choice for modern plumbing systems.

By choosing copper pipes, you support sustainable practices while benefiting from their durability and performance. Additionally, copper’s long lifespan reduces the need for frequent replacements, further lowering the environmental footprint of your project.

Copper’s non-toxic nature also ensures that it does not harm the environment or contaminate water supplies. This makes it a responsible choice for those looking to balance functionality with environmental stewardship.

Common Mistakes to Avoid When Selecting Copper Pipes

Overlooking Local Code Requirements

Failing to check local building codes can lead to significant problems during your plumbing project. Each region has specific regulations that dictate which types of copper pipes are acceptable for various applications. For instance, some areas prohibit the use of Type M pipes in residential plumbing due to their thinner walls and lower durability. Ignoring these rules may result in non-compliance, fines, or even the need to replace improperly installed pipes.

Tip: Always consult your local building authority before purchasing copper pipes. This ensures your project meets legal standards and avoids costly mistakes.

Local codes also address safety concerns, such as the use of copper pipes for natural gas distribution. Certain jurisdictions may restrict this practice due to potential risks. By adhering to these guidelines, you protect your property and ensure the longevity of your plumbing system.

Choosing the Wrong Type for the Job

Selecting the wrong type of copper pipe can compromise the performance and safety of your plumbing system. Each type—Type K, Type L, Type M, and DWV—serves a specific purpose. For example, using Type M pipes in high-pressure systems can lead to leaks or pipe failure due to their thinner walls. Similarly, DWV pipes, designed for gravity-based drainage, cannot handle pressurized water supply lines.

To avoid this mistake, match the pipe to the application:

Type K: Ideal for underground water mains and high-pressure systems.
Type L: Suitable for interior water distribution and HVAC systems.
Type M: Best for low-pressure residential plumbing.
DWV: Designed for drain, waste, and vent systems.

Pro Tip: Consider the medium being transported, environmental conditions, and system pressure requirements when choosing a pipe. This ensures optimal performance and reduces the risk of future issues.

Ignoring Long-Term Costs and Maintenance

Focusing solely on upfront costs often leads to higher expenses in the long run. While Type M pipes are more affordable initially, their thinner walls make them less durable. Over time, this can result in leaks, corrosion, or even complete pipe failure. For instance, pinhole leaks caused by long-term corrosion are a common issue in older copper pipes. These leaks are difficult to detect and can cause significant damage if left unaddressed.

Did You Know? Increased acidity in water accelerates corrosion, leading to pinhole leaks and blue-green stains on pipes.

Investing in more durable options, such as Type L or Type K pipes, reduces maintenance and replacement costs over time. These pipes offer greater resistance to wear and tear, ensuring a longer lifespan for your plumbing system. Additionally, consider the environmental impact of your choice. Copper pipes are recyclable, making them a sustainable option for long-term use.

Reminder: Prioritize durability and compliance over short-term savings. A well-chosen pipe minimizes maintenance needs and enhances the reliability of your plumbing system.

Understanding the differences between Type K, Type L, Type M, and DWV copper pipes helps you make informed decisions. Each type serves specific purposes based on wall thickness and strength. Choosing the right pipe ensures efficiency, safety, and cost-effectiveness. Always consider the application, budget, and local building codes before making a selection. Proper installation and regular maintenance further enhance the performance and longevity of your copper pipes. By aligning your choice with your project’s needs, you can achieve reliable and durable plumbing systems.

FAQ

What are the common types of copper piping?

The most common types of copper piping include Type K, Type L, Type M, and DWV. Among these, Type L copper pipe is the most widely used. It works well for interior plumbing, fire protection systems, and some HVAC applications. You can find it in both rigid and flexible forms, making it versatile for various installations. Flexible Type L copper is ideal for repairing or replacing old water lines, while rigid tubing offers greater durability. Type L copper also performs well outdoors, even when directly exposed to the elements. Its wall thickness strikes a balance between strength and cost, making it a popular choice for residential and commercial projects.

How do I identify the type of copper pipe I have?

You can identify the type of copper pipe by checking the markings on the pipe. Manufacturers often label pipes with their type, such as "Type K," "Type L," "Type M," or "DWV." Additionally, the color of the markings can help. For example, Type K pipes usually have green markings, Type L pipes have blue markings, and Type M pipes have red markings. DWV pipes often feature yellow markings. If the markings are not visible, you can measure the wall thickness to determine the type. Thicker walls indicate Type K, while thinner walls suggest Type M or DWV.

Can I use Type M copper pipe for all plumbing needs?

No, Type M copper pipe is not suitable for all plumbing needs. Its thinner walls make it less durable than Types K and L. Type M works best for low-pressure applications, such as residential plumbing systems for domestic water service. However, it is not recommended for high-pressure systems or outdoor installations where durability is critical. Some local building codes may also restrict the use of Type M pipes in certain applications. Always check your local regulations before using Type M copper pipe.

What is the difference between rigid and flexible copper pipes?

Rigid copper pipes are straight and sturdy, making them ideal for long, straight runs in plumbing systems. They provide excellent durability and are commonly used in water supply lines. Flexible copper pipes, on the other hand, are bendable and easier to work with in tight spaces or areas requiring intricate bends. Flexible pipes are often used for repairs or retrofitting existing systems. Both rigid and flexible pipes are available in Types K, L, and M, allowing you to choose based on your specific needs.

Are copper pipes safe for drinking water?

Yes, copper pipes are safe for drinking water. Copper is a non-toxic material that does not release harmful chemicals into the water. Its natural resistance to corrosion ensures that the water remains clean and uncontaminated. Additionally, copper pipes do not harbor bacteria, making them a hygienic choice for potable water systems. However, if your water has high acidity, it may cause corrosion over time. In such cases, consider using protective measures like pipe coatings or water treatment systems.

How long do copper pipes typically last?

Copper pipes are known for their longevity. Under ideal conditions, they can last 50 to 80 years or more. The lifespan depends on factors such as water quality, installation practices, and environmental conditions. For example, Type K pipes, with their thick walls, tend to last longer than thinner-walled pipes like Type M. Regular maintenance and inspections can help extend the life of your copper plumbing system.

Can I use copper pipes for natural gas lines?

No, copper pipes are generally not recommended for natural gas lines. Natural gas can react with copper, causing corrosion and potential leaks. Most building codes prohibit the use of copper pipes for gas distribution. Instead, materials like black steel or polyethylene are commonly used for natural gas systems. Always consult your local building authority to ensure compliance with safety regulations.

What should I consider when choosing a copper pipe?

When selecting a copper pipe, consider the following factors:

Application: Match the pipe type to the intended use. For high-pressure systems, choose Type K. For standard water distribution, Type L works well. For low-pressure applications, Type M is sufficient.
Durability: Assess the wall thickness and strength needed for your project.
Local Codes: Check local building regulations to ensure compliance.
Budget: Balance cost with performance. While Type M is more affordable, Types K and L offer greater durability.
Environmental Conditions: For outdoor or underground installations, opt for thicker-walled pipes like Type K.

Are copper pipes environmentally friendly?

Yes, copper pipes are environmentally friendly. Copper is a natural material that can be recycled indefinitely without losing its quality. Recycling copper requires less energy than producing new copper, reducing its environmental impact. Additionally, copper pipes have a long lifespan, which minimizes waste from replacements. Their non-toxic nature ensures they do not harm the environment or contaminate water supplies, making them a sustainable choice for plumbing systems.

What are the signs of corrosion in copper pipes?

Signs of corrosion in copper pipes include:

Blue-green stains on fixtures or around pipe joints.
Pinhole leaks, which may cause water damage or reduced water pressure.
Discolored water, often with a metallic taste.
Visible pitting or rough spots on the pipe surface.

If you notice any of these signs, address the issue promptly to prevent further damage. Regular inspections and water quality testing can help detect and mitigate corrosion early.
