Introduction
Central air conditioning systems are the backbone of climate control in modern commercial buildings, high-rise residential complexes, hotels, hospitals, shopping malls, data centers, and industrial facilities. Unlike residential mini-split units, central AC systems—including Variable Refrigerant Flow (VRF/VRF), multi-zone ducted systems, chilled water loops, and large-tonnage rooftop units—demand superior performance, durability, and precision from every component. As the “vascular system” of these complex HVAC setups, copper pipes and connecting line sets play a critical role in ensuring efficient refrigerant flow, optimal heat exchange, and long-term system reliability.
Dongguan Baoyuan Refrigeration Parts Co., Ltd. (www.copperpipe.net) has been a leading manufacturer of high-quality copper tubing and air conditioning connecting components for over [X] years. Specializing in ACR (Air Conditioning & Refrigeration) grade copper products, we provide comprehensive central air conditioning solutions that power efficient, reliable, and cost-effective HVAC installations worldwide. Our full product range includes seamless pure copper pipes, internal threaded copper tubes, pre-insulated line sets, copper-aluminum composite tubes, and custom installation kits—all engineered to meet the rigorous demands of large-scale central AC systems.
Chapter 1: Why Copper Is the Preferred Material for Central Air Conditioning Systems
Central air conditioning systems operate under continuous high pressure, extreme temperature fluctuations, and long-term cyclic stress. Copper has proven to be the most reliable and efficient material for refrigerant piping due to its unique combination of properties:
1.1 Exceptional Thermal Conductivity
Copper offers unmatched thermal conductivity (over 390 W/m·K), ensuring rapid and efficient heat transfer between the refrigerant and the surrounding environment. This directly translates to higher HVAC system efficiency (EER/SEER), reduced energy consumption, and lower operational costs for building owners—critical advantages for large central systems that run 24/7.
1.2 Superior Pressure Resistance & Mechanical Strength
Modern central AC systems using eco-friendly refrigerants like R410A, R454C, and R32 operate at significantly higher pressures (up to 4.0 MPa and above) compared to older R22 systems. Our copper tubes are manufactured to withstand these high pressures, with excellent tensile strength and fatigue resistance, preventing cracks, leaks, and system failures even under decades of cyclic loading.
1.3 Excellent Corrosion Resistance
Copper naturally forms a protective patina that resists internal and external corrosion, making it ideal for both refrigerant lines and water-based chilled water systems. This corrosion resistance ensures a long service life (often 20–30 years) and minimizes maintenance requirements for buried or concealed central AC piping networks.
1.4 Ductility & Ease of Installation
Soft-annealed copper pipes are highly malleable, allowing for easy on-site bending, flaring, and brazing without cracking. This flexibility is essential for navigating complex building structures, reducing the need for joints, and lowering the risk of leaks—key considerations in large central AC installations with extensive piping runs.
1.5 Hygienic & Recyclable
Copper is non-porous, inhibits bacterial growth, and is 100% infinitely recyclable without losing quality. This supports green building certifications (LEED, BREEAM) and aligns with global sustainability goals for commercial HVAC systems.
Chapter 2: Baoyuan Factory & Manufacturing Capabilities

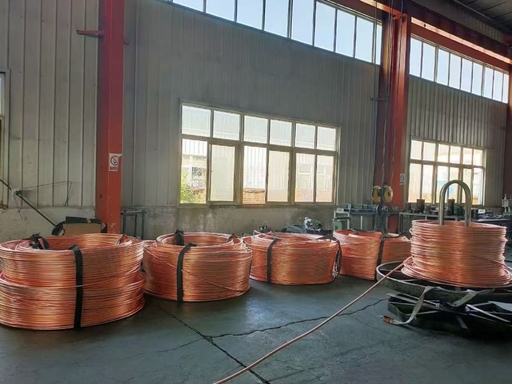

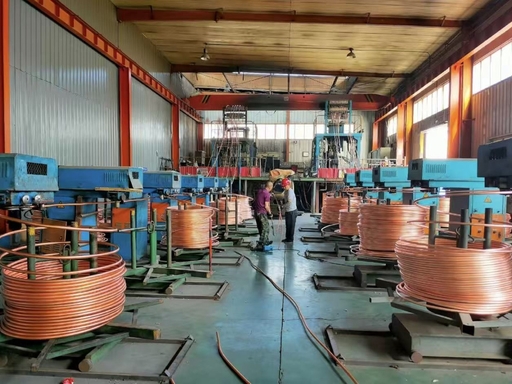

Dongguan Baoyuan Refrigeration Parts Co., Ltd. operates a state-of-the-art, ISO 9001 certified manufacturing facility in Dongguan, China—strategically located in the heart of the Pearl River Delta’s manufacturing hub. Our factory is purpose-built for producing ACR-grade copper products at scale, with full vertical integration from raw material incoming inspection to finished product packaging.
2.1 Advanced Production Equipment
- High-precision cold-drawing machines: Ensures tight dimensional tolerances (OD ±0.08mm, wall thickness ±0.05mm) for seamless copper tubes.
- Continuous bright annealing lines: Produces clean, oxide-free soft copper coils with consistent mechanical properties.
- Automated cutting & shaping lines: For custom length straight pipes (6m/12m standard) and precision fittings.
- Internal threading machines: Produces high-efficiency inner-grooved copper tubes to boost heat exchange performance.
- PE insulation foaming lines: In-house production of 9–25mm thick closed-cell PE insulation for pre-insulated line sets.
- Automated packaging & coil winding lines: Ensures products are clean, dry, capped, and protected for global shipping.
2.2 Strict Quality Control (QC)
Quality is the cornerstone of Baoyuan’s central AC solutions. Our QC process includes 5-stage inspection:
- Raw Material Inspection: Only 99.9% pure T2/C12200 phosphorus-deoxidized copper (Cu ≥99.90%, P ≤0.003%) from certified refineries.
- In-process Monitoring: Real-time dimensional checks, pressure testing, and surface quality control.
- Pressure & Leak Testing: 100% of finished tubes undergo hydrostatic pressure testing (up to 6.0 MPa) and helium leak detection.
- Cleanliness & Dehydration: All central AC copper pipes are thoroughly degreased, cleaned, dehydrated, and sealed with plastic caps to meet ACR cleanliness standards (impurity <30mg/10m).
- Final Packaging & Certification: Full batch testing with material certificates (Mill Test Reports) compliant with ASTM B280, GB/T 17791, and JIS H3300 standards.
2.3 Production Capacity
- Annual copper tube production capacity: Over 30,000 metric tons.
- Monthly pre-insulated line set output: 500,000+ sets.
- Customization capability: OEM/ODM for global HVAC brands, with short lead times (15–25 days for mass orders).
- Export experience: Products supplied to 60+ countries across North America, Europe, Middle East, Southeast Asia, and Oceania.
Chapter 3: Baoyuan Product Range for Central Air Conditioning Systems
We offer a complete portfolio of copper piping solutions designed specifically for all types of central AC systems, including VRF multi-zone, ducted packaged units, chilled water systems, and large-tonnage commercial HVAC.

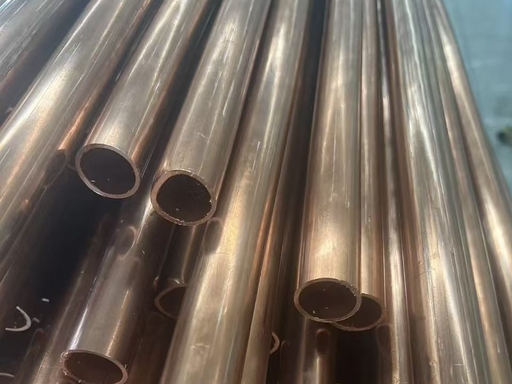

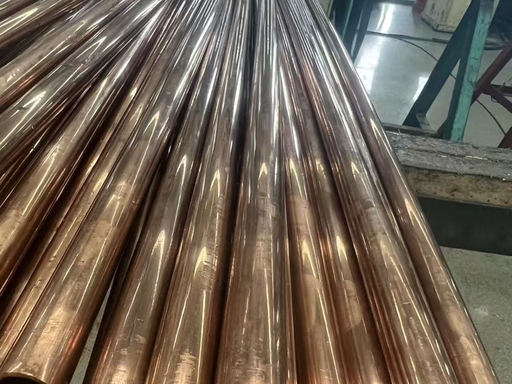

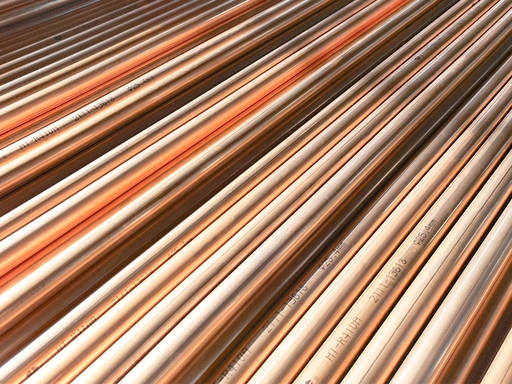

3.1 Seamless Pure Copper Tubes (ASTM B280 / GB/T 17791)

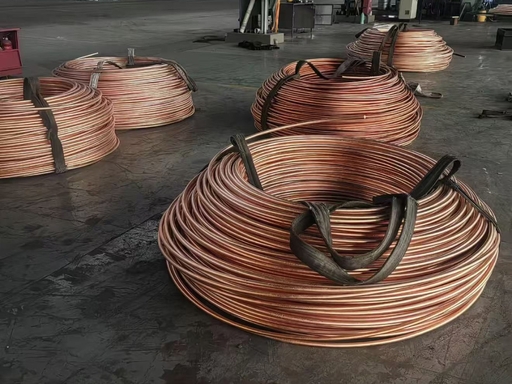

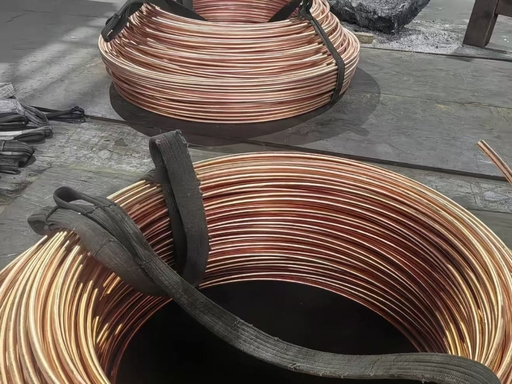

The core component for central AC refrigerant lines. Available in both soft annealed (coil) and hard-drawn (straight) tempers.
- Materials: TP2 (C12200) phosphorus-deoxidized copper, TU1/TU2 oxygen-free copper.
- Standard Sizes (OD × Wall Thickness):
- Small/medium zones (VRF indoor units): Φ6.35×0.8, Φ9.52×0.8, Φ12.7×0.8, Φ15.88×1.0
- Main lines & large systems: Φ19.05×1.0, Φ22.2×1.0, Φ25.4×1.2, Φ28.6×1.3, Φ32×1.5, Φ38×1.5
- Lengths: Coils (15–50m), straight pipes (6m standard, 12m custom).
- Surface: Bright, oil-free, internally cleaned & dehydrated.
- Applications: VRF/VRV main lines, branch lines, chilled water circuits, heat pumps.
3.2 Internal Threaded (Inner-Grooved) Copper Tubes
Engineered for maximum heat exchange efficiency in evaporators, condensers, and high-efficiency central AC loops.
- Features: Precision inner spiral grooves increase internal surface area by ~30%, boosting thermal efficiency.
- Refrigerant Compatibility: Optimized for R410A, R32, R454C, R134a, and R744 (CO₂) systems.
- Applications: High-SEER central AC units, heat recovery VRF systems, industrial chillers.

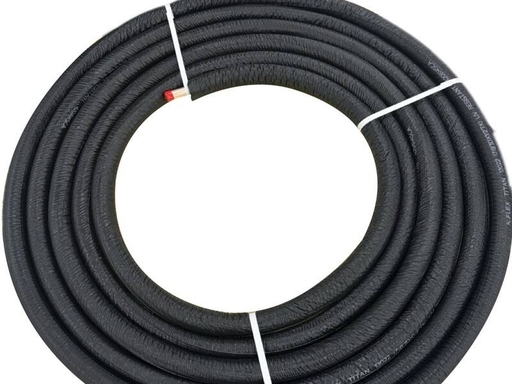

3.3 Pre-Insulated Copper Line Sets (For Central AC & VRF)
Ready-to-install, factory-assembled line sets—ideal for large-scale VRF/multi-zone central AC installations.
- Configuration: Paired liquid + gas lines (dual tubes), fully enclosed in thick PE insulation.
- Insulation: 9–25mm closed-cell PE foam (black/white), fire-retardant option available.
- Fittings: Pre-flared ends (sweat/flare connections), with optional insulation sleeves & installation accessories.
- Custom Lengths: 3m–20m standard, custom lengths up to 50m for long central AC runs.
- Advantages: Reduces on-site labor by 50%, eliminates insulation gaps, ensures system cleanliness.
3.4 Copper-Aluminum (Cu-Al) Composite Tubes (Cost-Saving Solution)
A high-performance, economical alternative to pure copper for secondary central AC lines.
- Structure: Copper ends (for brazing) + aluminum middle section.
- Benefits: 30–40% lighter, 20–30% lower cost vs. pure copper, excellent thermal & pressure performance.
- Applications: Non-critical VRF branch lines, low-pressure return lines, budget commercial projects.
3.5 Custom Central AC Installation Kits
Tailored solutions for large projects:
- Complete kits: Copper pipes + insulation + fittings + brackets + installation accessories.
- Custom diameters, lengths, and insulation thicknesses.
- OEM branding: Private labeling, custom packaging, barcoding for global distributors.
Chapter 4: Product Specifications & Central AC System Matching
Selecting the correct copper tube size is critical for central AC performance, efficiency, and reliability. Below is Baoyuan’s standard specification guide for common central AC system capacities:
4.1 Copper Tube Size vs. Central AC Capacity (VRF/Multi-Zone)
表格
| AC System Capacity | Liquid Line (OD×WT) | Gas Line (OD×WT) | Refrigerant |
|---|---|---|---|
| 6,000–9,000 BTU (Small Zone) | Φ6.35×0.8mm | Φ9.52×0.8mm | R410A/R32/R454C |
| 12,000–18,000 BTU (Medium Zone) | Φ6.35×0.8mm | Φ12.7×0.8mm | R410A/R32/R454C |
| 24,000–30,000 BTU (Large Zone) | Φ9.52×0.8mm | Φ15.88×1.0mm | R410A/R32/R454C |
| 36,000–48,000 BTU (Main Branch) | Φ12.7×0.8mm | Φ19.05×1.0mm | R410A/R32/R454C |
| 60,000–120,000 BTU (Main Line) | Φ15.88×1.0mm | Φ22.2–28.6×1.2mm | R410A/R454C |
| Chilled Water Systems | Φ25.4–38×1.5mm | — | Water/Glycol |
4.2 Key Standards Compliance
All Baoyuan central AC copper products meet or exceed:
- ASTM B280-23: Seamless Copper Tube for Air Conditioning and Refrigeration
- GB/T 17791-2017: Seamless Copper Tubes for Air Conditioners and Refrigeration Equipment
- JIS H3300: Copper and Copper Alloy Seamless Tubes
- RoHS & REACH: Environmentally safe, lead-free materials
Chapter 5: Applications of Baoyuan Central AC Solutions
Our copper piping solutions are trusted in a vast range of large-scale central air conditioning projects worldwide:
5.1 Commercial Buildings
- Office towers, high-rise apartments, mixed-use complexes
- VRF multi-zone systems, ducted central AC, chilled water loops
- Key Need: Long piping runs, high pressure resistance, leak-proof reliability
5.2 Hospitality & Healthcare
- Hotels, resorts, hospitals, clinics
- 24/7 operation, strict hygiene, quiet efficiency
- Solution: Pre-insulated line sets, medical-grade clean copper tubes
5.3 Retail & Public Facilities
- Shopping malls, supermarkets, airports, train stations, schools
- High foot traffic, large open spaces, diverse zoning needs
- Solution: Custom large-diameter main lines, durable Cu-Al secondary lines
5.4 Industrial & Specialized Facilities
- Data centers (precision cooling), factories, warehouses, clean rooms
- High heat loads, continuous operation, extreme reliability
- Solution: Thick-wall high-pressure copper tubes, internal threaded high-efficiency pipes
5.5 Eco-Friendly & Green Buildings
- LEED/BREEAM certified projects, net-zero energy buildings
- Low-GWP refrigerants (R454C, R32), high efficiency, sustainability
- Solution: Full recyclable copper, energy-efficient inner-grooved tubes
Chapter 6: Why Choose Baoyuan for Your Central AC Copper Solutions?
6.1 Factory Direct Advantage
- Cost Efficiency: Eliminate middlemen—competitive factory pricing with no quality compromise.
- Short Lead Times: In-house production ensures fast turnaround for large orders.
- Full Customization: OEM/ODM capabilities to meet your exact specifications & branding.
6.2 Uncompromising Quality
- 99.9% pure copper, zero defects, 100% pressure tested.
- ACR-grade cleanliness: internally degreased, dehydrated, capped.
- Full material certification & traceability for every batch.
6.3 Technical Expertise & Support
- Dedicated HVAC engineering team: provides piping design consultation, size selection, installation guidelines.
- Global after-sales support: technical documentation, installation videos, troubleshooting assistance.
6.4 Reliable Supply Chain
- Strategic location in Dongguan: easy access to ports, efficient worldwide shipping (sea/air/express).
- Stable raw material supply: long-term partnerships with top copper smelters.
- Large inventory: standard sizes in stock for immediate delivery.
6.5 Sustainable & Responsible Manufacturing
- Energy-efficient production lines, waste recycling (100% copper scrap reused).
- Compliance with international environmental standards (RoHS, REACH).
- Low carbon footprint, supporting green HVAC initiatives.
Chapter 7: Case Study – Large-Scale VRF Central AC Project
Client: Major hotel chain (Southeast Asia)
Project: 35-story luxury hotel with 450+ rooms, banquet halls, restaurants, and conference facilities
System: VRF central AC (8× outdoor units (120,000 BTU each), 500+ indoor units)
Challenge: Long vertical piping runs (up to 120m), high pressure R410A, strict fire safety, fast installation.
Baoyuan Solution:
- Supplied 25,000+ meters of custom pre-insulated line sets (Φ9.52+Φ15.88, Φ12.7+Φ19.05).
- Fire-retardant PE insulation (25mm thick) for vertical risers.
- 12m long straight copper pipes for main risers (minimized joints).
- Full OEM packaging & project-specific labeling.
Result:
- Installation time reduced by 40% vs. traditional on-site insulation.
- Zero leaks during 5-year warranty period.
- Hotel achieved 20% higher energy efficiency vs. design estimates due to premium copper thermal performance.
Conclusion
In the demanding world of central air conditioning systems, where reliability, efficiency, and longevity are non-negotiable, Baoyuan copper piping solutions stand as the industry benchmark. From small commercial VRF setups to massive chilled water networks spanning entire city blocks, our ACR-grade copper tubes, pre-insulated line sets, and custom HVAC solutions deliver the performance, quality, and value that critical projects demand.
Dongguan Baoyuan Refrigeration Parts Co., Ltd. (www.copperpipe.net) is your trusted global partner for central air conditioning copper solutions. With our advanced manufacturing, strict quality control, technical expertise, and factory-direct pricing, we empower HVAC contractors, system integrators, OEMs, and distributors worldwide to build better, more efficient, and more reliable central AC systems.
